TTA System Veterinary Manufacturer & Factories for the Sydney Market

Technical Whitepaper: Advanced Biomechanical Engineering, Titanium Metallurgy, and OEM Manufacturing Standards for Canine Stifle Reconstruction in New South Wales

Featured Veterinary & Surgical Implant Systems

Export-grade orthopaedic solutions engineered under ISO 13485 quality standards for Sydney veterinary hospitals and specialist surgical centers.

XC MEDICO Export Grade 3.2mm ALPS Titanium Trauma Reconstruction Veterinary Orthopedic Implant

XC MEDICO Export Grade 3.2mm ALPS Titanium Trauma Reconstruction Veterinary Orthopedic Implant for Animal Clinic Use

Inquire Now
Top Value Manual Reusable Shoulder Arthroplasty Instruments Set

Top Value Manual Reusable Shoulder Arthroplasty Instruments Set with Glenoid Retractor Kolbel Soft Tissue Retractor Made Steel

Inquire Now
CE&ISO Meditech Orthopedic Hip Replacement Implants Devices

CE&ISO Meditech Orthopedic Hip Replacement Implants Devices Femoral Revision Bipolar Prosthesis Hip Modular Stem T2561 Class III

Inquire Now

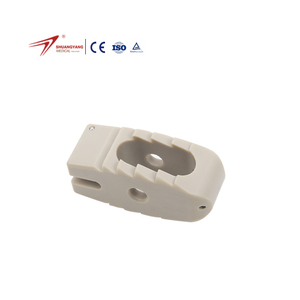

Shuangyang Orthopaedic Surgery Implants Cervical Interbody Fusion Cage Made of PEEK

Shuangyang Orthopaedic Surgery Implants Corpectomy Cervical Interbody Fusion Cage Spine Cervical Cage Made of Peek

Inquire Now

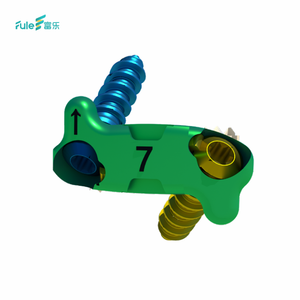

Competitive Price CE/ISO Titanium/PEEK Anterior Interbody Fusion Cage

Competitive Price CE/ISO13485/ISO9001 Certified Fule Titanium/PEEK Anterior Interbody Fusion Cage Class III Spinal Fixation 5+

Inquire Now
Surgical Instrument Under Discectomy Endoscope Medical Shaver System

Surgical Instrument Under Discectomy Endoscope Medical Shaver System

Inquire Now
RUNPHY Titanium Gold Veterinary Orthopedic Implant TPLO TTA Rapid

RUNPHY Titanium Gold Veterinary Orthopedic Implant TPLO TTA Rapid Dog Cat Small Animal Tibial Tuberosity Advancement Machined

Inquire Now
High Biocompatible PEEK Cervical Cage With Screw

High Biocompatible PEEK Cervical Cage With Screw Anterior Cervical Fusion Cage Spinal Implant

Inquire Now
ISO 13485
Certified Quality Standard
Ti-6Al-4V
ASTM F1472 Grade Implants
SAL 10-6
Gamma Sterilization Assurance
100%
Batch Traceability Control

Executive Summary: Biomechanical Rationale of TTA Systems in Veterinary Orthopedics

Cranial Cruciate Ligament (CCL) rupture represents the most prevalent orthopedic pathology encountered in canine patients across New South Wales, accounting for over 70% of hindlimb lameness referrals in Sydney veterinary surgical practices. Traditional extra-capsular stabilization techniques frequently suffer from fatigue failure and high recurrence rates in large, active canine breeds. The Tibial Tuberosity Advancement (TTA) system neutralizes cranial shear forces by altering the internal biomechanics of the stifle joint rather than attempting to reconstruct the anatomical ligament.

By advancing the tibial tuberosity anteriorly, the angle between the patellar tendon and the tibial plateau slope is adjusted to precisely 90 degrees during peak weight-bearing stance. At this perpendicular angle, the joint reaction force vector becomes parallel to the tibial functional axis, completely eliminating the cranial tibial thrust force. As a premier original equipment manufacturer (OEM) and direct factory supplier, our medical-grade TTA cages, tension-band plates, and locking screws are engineered to withstand complex dynamic loads exceeding 5,000,000 cycles, ensuring complete bone graft integration without construct collapse.

Localized Application Scenarios in Greater Sydney & New South Wales

The Sydney metropolitan region presents a unique veterinary clinical landscape characterized by high pet ownership, an active outdoor lifestyle, and a strong preference for high-energy canine breeds such as Labradors, Golden Retrievers, German Shepherds, Australian Cattle Dogs (Kelpies), and Staffordshire Bull Terriers. These breeds are frequently subjected to intense physical exertion along Sydney’s coastal trails, off-leash parks, and agility circuits, rendering them particularly vulnerable to acute CCL tears and avulsion fractures.

Specialist Emergency & Referral Centers

In high-volume referral facilities located in Sydney's Northern Beaches, Inner West, and Western Sydney, surgical suites demand reliable, pre-sterilized TTA Rapid and ALPS titanium implants. Direct factory manufacturing ensures stable inventory consignment and consistent thread tolerance across all plate sizes (2.7mm to 3.5mm systems).

Working & Agility Canine Rehabilitation

Agility and working dogs in peri-urban Sydney require accelerated osteointegration. Our porous titanium TTA cages, produced via precision multi-axis CNC micro-machining and porous surface treatment, support early cancellous bone graft packing (autograft or synthetic hydroxyapatite), shortening return-to-function cycles to under 6 weeks.

General Surgical Practices & Clinics

General veterinary practices across Greater Sydney upgrading from traditional lateral suture procedures benefit from complete, standardized TTA instrument trays featuring drill guides, depth gauges, bone levers, and cage inserters designed for reproducible surgical execution.

Metallurgical Specifications & Mechanical Comparison Matrix

To assist Sydney veterinary surgeons and practice managers in selecting optimal surgical implants, the table below delineates the physical properties and material compliance standards of our veterinary orthopedic range:

Specification Metric Medical-Grade Ti-6Al-4V (TC4) Pure Titanium (TA2 / TA3) Medical PEEK (Polyetheretherketone)
Applicable Standard ASTM F1472 / ISO 5832-3 ASTM F67 / ISO 5832-2 ASTM F2026
Tensile Strength (MPa) ≥ 930 MPa 400 – 500 MPa 90 – 100 MPa
Yield Strength (MPa) ≥ 860 MPa 275 – 380 MPa 110 – 130 MPa (Flexural)
Modulus of Elasticity (GPa) 110 GPa 105 GPa 3.6 GPa (Close to cortical bone)
Corrosion Resistance Superior Anodized Oxide Layer Excellent Native Passive Film Biochemically Inert
Primary Clinical Application TTA Plates, Locking Screws, TPLO Porous TTA Cages, Trauma Plates Cervical & Spinal Interbody Cages

Emerging Development Trends in the Sydney Veterinary Orthopedic Market

The Australian veterinary healthcare market is undergoing rapid modernization, driven by pet humanization, increased uptake of comprehensive pet insurance in Sydney metropolitan suburbs, and elevated client expectations for specialist-level surgical outcomes. Several pivotal trends are reshaping veterinary orthopedics in New South Wales:

  • Shift Toward TTA Rapid & Minimally Invasive Constructs: Sydney veterinary surgeons are increasingly adopting TTA Rapid techniques that utilize a single porous wedge cage secured with integrated ear-screws. This eliminates the need for separate plate-and-fork fixation, reducing surgical dissection time, intraoperative tissue trauma, and anesthetic risk.
  • Preference for Pre-Sterilized Packaging (SAL 10-6): In response to strict infection control audits and labor costs associated with autoclave operation in private Australian clinics, demand for individual gamma-sterilized implant packaging (Co-60 irradiated) has surged. Pre-packaged implants ensure 100% sterility assurance while streamlining inventory tracking via standardized barcode scanning.
  • Integration of Arthroscopic Joint Inspection: Modern CCL surgery protocols in Sydney now routinely combine TTA stifle stabilization with preliminary joint inspection via micro-endoscopes and medical shaver systems to evaluate and treat medial meniscal tears prior to osteotomy.
  • Factory-Direct OEM Customization for Regional Veterinary Chains: Large corporate veterinary groups operating across NSW are bypassing intermediary brokers in favor of direct manufacturer partnerships to secure custom-branded surgical trays, specific screw length assortments, and direct technical file access for regulatory registration.

Enterprise Manufacturing Advantages & Quality Control Systems

As an ISO 13485 and ISO 9001 certified manufacturer specializing in human and veterinary orthopedic solutions, our production facilities combine state-of-the-art Swiss CNC machining technology with rigorous metallurgical inspection standards:

Ultra-Precision CNC Machining

Utilizing 5-axis DMG MORI and Citizen Swiss lathe systems to maintain strict mechanical tolerances within ±0.005 mm on critical screw threads and cage locking mechanisms.

Class 100,000 Cleanroom

Cleaning, assembly, and double-blister sterile packaging operations are conducted inside certified ISO Class 7 (Class 100,000) cleanrooms to guarantee non-pyrogenic product release.

Comprehensive OEM/ODM Support

From custom CAD drawing analysis to rapid 7-day prototyping, laser marking, surface anodization color-coding, and custom container tray configuration.

Complete Batch Traceability

Every shipment includes raw material mill certs, CMM dimension verification sheets, surface roughness reports, and Co-60 sterilization validation documentation.

Sydney Veterinary Buyer FAQ: Sourcing & Compliance Guide

Key questions addressed by our engineering and export compliance departments for clinic owners, procurement officers, and surgical specialists in New South Wales.

What regulatory certifications are required to import veterinary TTA implants into Australia?
While human medical devices in Australia are governed by the Therapeutic Goods Administration (TGA), veterinary medical devices do not require TGA registration unless specified by state legislation. However, Australian veterinary boards and specialist surgical bodies strongly enforce quality management standards. Our products are manufactured under strict ISO 13485 and ISO 9001 credentials, with full CE alignment and material compliance per ASTM F1472 and ASTM F67, ensuring seamless import clearance through Australian Customs at Sydney Kingsford Smith Airport (SYD) or Port Botany.
How does Ti-6Al-4V titanium alloy compare to 316L stainless steel for TTA constructs in active dogs?
Ti-6Al-4V (Grade 5 Titanium) provides a significantly higher strength-to-weight ratio and a modulus of elasticity (110 GPa) much closer to canine cortical bone (15-20 GPa) compared to 316L stainless steel (200 GPa). This stress-shielding reduction promotes faster bone healing across the osteotomy gap. Additionally, titanium exhibits superior corrosion resistance in Sydney's coastal, high-humidity environment and is fully compatible with postoperative MRI or CT imaging.
What is the standard lead time for OEM orders shipped to veterinary clinics in Sydney?
Standard catalog items, including TTA cages, plates, and self-tapping locking screws, are dispatched from our central warehouse within 3 to 5 business days via express air freight (DHL/FedEx/UPS), arriving in Sydney within 4 to 7 operational days. Custom OEM/ODM orders requiring private labeling, color anodization, or custom tray design typically require 3 to 4 weeks for production and validation prior to air dispatch.
Can implants be delivered in pre-sterilized formats, and what is the shelf life?
Yes. All our veterinary bone plates, screws, and TTA cages can be supplied in double-blister sterile packaging subjected to Cobalt-60 gamma radiation. This achieves a validated Sterility Assurance Level (SAL) of 10-6 per ISO 11137 standards. The packaged products carry a 5-year validated sterile shelf life, allowing Sydney practices to maintain immediate surgical readiness without local autoclave processing overhead.
Do you offer customized surgical instrument sets tailored to specific TTA techniques?
Absolutely. We design and manufacture custom stainless steel and aluminum surgical instrument trays containing color-coded drill bits, T-handle torque limiters, benders, depth gauges, and bone levers tailored to your practice’s preferred surgical protocol (TTA Rapid, Traditional TTA, or ALPS Trauma systems). Laser engraving of clinic logos and custom tray layout graphics is available upon request.
What product traceability documentation is provided with each veterinary shipment?
Every shipment dispatched to Australian buyers is backed by a full Certificate of Conformance (CoC), material heat lot certificates, mechanical testing inspection sheets, and sterilization batch certificates. This level of rigorous documentation protects your clinical practice against liability and supports high-standard hospital accreditation audits.

Partner with a Leading Veterinary Orthopedic Manufacturer

Elevate your Sydney surgical practice or veterinary distribution network with direct factory pricing, ISO 13485 quality assurance, and uncompromised metallurgical precision.
