Featured CE-Certified Orthopedic Implants & Surgical Instrumentation
Engineered for uncompromising anatomical precision, structural fatigue resistance, and sterile OR readiness. Explore our top-tier CE-certified trauma fixation systems, spinal interbody cages, endoscopic instruments, and specialized surgical kits manufactured under strict ISO 13485 quality frameworks.
VA Distal Radius Locking Plate Variable Angle System for Fracture Fixation CE Titanium Trauma Implants
Anatomically pre-contoured low-profile titanium alloy plate featuring polyaxial variable-angle locking screws up to 30° cone trajectory for optimal periarticular fracture reduction.
- ASTM F136 Ti-6Al-4V ELI Grade
- Variable-Angle Polyaxial Screw Thread
- Combines Locking & Compression Holes
QNQ Premium Quality Medical Endoscopic Discectomy System Arm Scope Instruments Holder Stainless Steel Manual Instrument Set
Precision-engineered stainless steel scope holding arm designed for ultra-stable positioning during minimally invasive transforaminal and interlaminar endoscopic spinal surgery.
- Medical-Grade 17-4PH / 316L Steel
- 360° Multi-Axis Rigid Fixation
- Fully Autoclavable Corrosion Resistance
ISO 13485 Custom 5 6 Axis CNC Machining Medical Titanium Bone Plate Orthopedic Pedicle Screw Spinal Implant Components
Custom contract manufacturing for complex spinal pedicle screws, bone plates, and specialized joint connectors using state-of-the-art Swiss 5/6-axis CNC turning and milling centers.
- Micron-Level Tolerance (±0.005mm)
- Type II Anodic Color Surface Coating
- 100% Optical CMM Inspection
Orthopaedic Implants Cervical Interbody Fusion Cage Surgical Spine Implants Cervical Peek Cage
Biocompatible PEEK-OPTIMA cervical interbody fusion spacer designed to match the modulus of native bone, integrated with tantalum radiopaque markers for intraoperative X-ray verification.
- Radiolucent PEEK Polymer Matrix
- Anatomical Pyramidal Serrated Teeth
- Large Central Graft Chamber
BANA Brand Orthopedic Spine Orthopedic Surgery Pkp Pvp Kyphoplasty Vertebroplasty Kit Is in Stock at the Warehouse
Complete disposable balloon kyphoplasty system engineered for height restoration and bone cement injection in painful osteoporotic vertebral compression fractures (VCFs).
- High-Pressure Radiopaque Balloon
- Ergonomic Cement Delivery Gun
- Warehouse Stocked & Immediate Ship
Medical Percutaneous Vertebroplasty (PVP) Kit Disposable Bone Cement Injection System for Spinal Compression Fracture
Sterile percutaneous vertebroplasty kit featuring sharp trocar needles, threaded bone cement injection syringes, and directional delivery cannulas for precise PMMA delivery.
- Bevel/Diamond Tip Trocar Needles
- Controlled Viscosity PMMA Mixer
- Co-60 Gamma Sterilized SAL 10⁻⁶

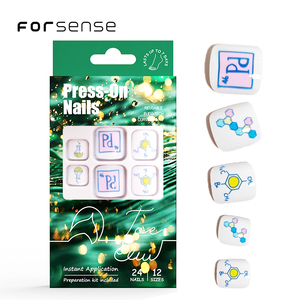

Premium False Nails with Design and Stickers Custom Unique Patterns Toe Nails Supplies Press on White Color Glue on Nail Tips
High-precision injection-molded polymer products and aesthetic care consumables produced under ISO-compliant healthcare plastic molding infrastructure for OEM wholesale distributors.
- Ultra-Durable Virgin ABS Polymer
- Custom Aesthetic Patterning
- Sterile/Bulk Packaging Options

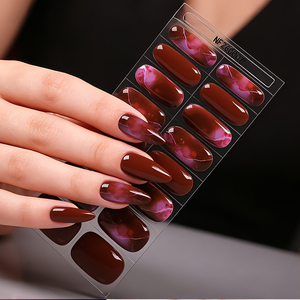

Wholesale Supplier High Quality Healthy Long Lasting 3D French Nail Art Semi Cured Gel Nail Wraps Set UV Lamp Gel Nail Stickers
Non-toxic photopolymer formulation technology for specialized gel care solutions, manufactured in cleanroom polymer processing facilities for international consumer and clinical distributors.
- Biocompatible Gel Formulation
- UV Light Curing Stability
- Private Label Sourcing OEM
1. Engineering Rigor & Enterprise Manufacturing Capabilities
In modern orthopedic surgery, implant success relies directly on metallurgical purity, mechanical stress tolerances, and strict regulatory compliance. As an established CE-certified orthopedic implant manufacturer and global OEM/ODM contract supplier, our production operations adhere to strict international standards governing implantable medical devices.
Our centralized manufacturing center houses multi-axis CNC Swiss automatic turning machines, 5-axis high-speed machining centers, electrical discharge machining (EDM), and cleanroom packaging facilities (ISO Class 7). From raw material forging to final Co-60 gamma sterilization, every step is governed by a fully documented quality management system (QMS) aligned with ISO 13485:2016 and ISO 9001.
Medical-Grade Alloys & Polymers
We work exclusively with certified medical materials: Titanium Grade 4 (ASTM F67) for high biocompatibility plates, Ti-6Al-4V ELI (ASTM F1472 / ASTM F136) for high-load spinal pedicle screws, and PEEK-OPTIMA for radiolucent spinal cages.
Surface Finishing Technologies
Implants undergo specialized electrochemical treatments including Type II Anodization (to prevent galling and enhance fatigue strength), micro-shot blasting for osteoblast attachment, and mirror polishing for joint surfaces.
Complete Traceability & SAL 10⁻⁶
Every bone plate, screw, and spinal cage carries a laser-etched Unique Device Identifier (UDI). Implants are packaged in double-sterile Tyvek blisters, reaching a Sterility Assurance Level (SAL) of 10⁻⁶ via Cobalt-60 gamma ray irradiation.
Metallurgical & Mechanical Property Standards
The table below summarizes the material selection and testing standards used across our trauma, spine, and joint implant product lines:
| Material Designation | Applicable Standard | Tensile Strength (MPa) | Yield Strength (MPa) | Primary Clinical Indications |
|---|---|---|---|---|
| Unalloyed Titanium (TA2 / TA3) | ASTM F67 / ISO 5832-2 | ≥ 480 - 550 | ≥ 340 - 450 | Low-load trauma bone plates, craniofacial fixation, reconstructive mesh |
| Ti-6Al-4V ELI Alloy (TC4) | ASTM F136 / ASTM F1472 | ≥ 860 - 930 | ≥ 780 - 860 | Spinal pedicle screws, intramedullary nails, locking radius/femur plates |
| PEEK Polymer (Optima) | ASTM F2026 | ≥ 90 - 100 | ≥ 110 (Flexural) | Cervical and lumbar interbody fusion cages, suture anchors |
| Stainless Steel (316L / 17-4PH) | ASTM F138 / ASTM F899 | ≥ 620 - 1100 | ≥ 310 - 750 | Surgical instruments, scope holding arms, drill bits, trial implants |
2. Technological Trends Reshaping Orthopedic Device Manufacturing
The global orthopedic market is undergoing a rapid evolution driven by minimally invasive surgery (MIS), digital preoperative planning, advanced surface modification, and strict regulatory revisions like the European Union's EU MDR 2017/745. Sourcing managers and medical device distributors must understand these key trends when evaluating manufacturing partners.
A. Additive Manufacturing & Trabecular Titanium Structures
Traditional subtractive machining is now complemented by 3D Direct Metal Laser Sintering (DMLS). Additive manufacturing allows the direct creation of porous trabecular structures mimicking human cancellous bone. With controlled porosity (50%–70%) and pore sizes ranging from 400 to 600 microns, these surfaces foster rapid osseointegration and vascular ingrowth, significantly reducing the risk of long-term implant loosening in total joint arthroplasty and spinal fusion.
B. Polyaxial & Variable-Angle Fixation Architectures
Standard fixed-angle trauma plates are increasingly being replaced by variable-angle (VA) locking systems. In distal radius, distal femur, and calcaneal fractures, fixed locking trajectories may fail to capture small bone fragments or can cause articular screw penetration. Modern VA locking mechanisms allow surgeons to flex screw trajectories within a 30-degree cone before locking the screw head into the plate thread, giving surgeons greater intraoperative flexibility.
C. Transition from MDD to EU MDR (2017/745) Compliance
The transition from the European Medical Devices Directive (MDD) to the stringent Medical Device Regulation (MDR) has reshaped the supply chain. MDR requires comprehensive clinical evaluation reports (CER), rigorous post-market clinical follow-up (PMCF), full UDI compliance, and unannounced notified body audits. CE-certified manufacturers who maintain robust technical documentation files (DHF/DHR) provide a significant risk-reduction advantage for international procurement teams.
3. Future Sourcing & Procurement Trends in Orthopedic Hardware
Procurement directors at private hospital networks, national health ministries, and global medical device distributors are adjusting their sourcing models to manage supply chain risks and cost pressures. Key trends shaping future procurement contracts include:
1. Shift Toward Ready-to-Use Sterile Implants
Hospitals are moving away from non-sterile implant trays that require repetitive hospital autoclaving. Pre-sterilized, single-pack titanium plates and screws eliminate reprocessing costs, lower hospital infection risks, and simplify inventory tracking.
2. Hybrid OEM/ODM Partner Consolidation
Distributors prefer working with full-portfolio manufacturers capable of delivering trauma, spine, sports medicine, and endoscopic instrumentation from a single production hub, reducing freight costs and vendor management complexity.
3. Demand for Turnkey Regulatory Technical Dossiers
Buyers require complete technical files (ISO 10993 biocompatibility, ASTM F382 plate bending tests, sterile barrier validation) to accelerate product registration with regional regulatory authorities (such as US FDA, Saudi FDA, or Brazilian ANVISA).
4. Custom OEM/ODM Production & Quality Management
For brands and distributors seeking private label production or custom implant development, our contract manufacturing services cover the entire product lifecycle from raw drawing review to finished sterile packaging.
Four-Step OEM Contract Manufacturing Process:
Step 1: DFM Analysis & CAD Modeling
Our engineering team performs Design for Manufacturability (DFM) analysis on customer 2D/3D CAD files, optimizing tool paths, material selection, and micro-tolerances.
Step 2: CNC Prototyping & Mechanical Testing
Rapid production of working prototypes followed by static compression, dynamic fatigue, and pull-out strength testing according to ASTM F543 and ASTM F1717 standards.
Step 3: Automated Precision Batch Production
High-volume machining using 5/6-axis Swiss CNC equipment, supported by online optical CMM verification and laser marking of product part numbers and UDI codes.
Step 4: Cleanroom Packaging & Sterilization
Product washing, cleanroom assembly in ISO Class 7 facilities, double Tyvek pouch sealing, Co-60 gamma ray sterilization, and complete export shipping documentation.
5. Frequently Asked Questions (FAQ) for Sourcing Managers
Common technical, regulatory, and commercial inquiries addressed by our engineering team:
Our manufacturing facilities operate under a certified ISO 13485:2016 and ISO 9001 Quality Management System. Our core trauma, spine, and surgical instrument lines carry the CE marking under European regulatory directives, making them ready for global hospital registration.
ASTM F67 (Unalloyed Pure Titanium TA2/TA3) offers maximum corrosion resistance and excellent ductility, ideal for low-load trauma plates and mesh. ASTM F1472 / ASTM F136 (Ti-6Al-4V ELI Grade 5) contains aluminum and vanadium, yielding a tensile strength exceeding 860–930 MPa, required for load-bearing pedicle screws, intramedullary nails, and locking plates.
Yes. Bone plates, trauma locking screws, intramedullary nails, and cannulated screws can be supplied in pre-sterilized Tyvek double-blister packaging. Sterilization is performed using Cobalt-60 gamma irradiation to achieve a Sterility Assurance Level (SAL) of 10⁻⁶ in accordance with ISO 11137.
Our advanced CNC turning-milling centers achieve micro-machining tolerances as tight as ±0.005 mm (5 microns). This precision ensures flawless thread matching between locking plate holes and variable-angle screw heads, preventing thread stripping during surgery.
Yes. For authorized distributors and private label OEM partners, we provide comprehensive technical registration dossiers including ISO 13485 certificates, CE certificates, material mill test reports, biocompatibility test data (ISO 10993), and surgical technique guides.
Standard warehouse items (such as standard trauma plates, pedicle screws, and PVP/PKP kits) have low MOQs and can ship within 5–10 business days. Custom OEM/ODM orders typically require 30–45 days depending on tooling requirements and production volume.
We utilize electrochemical Type II Anodization on titanium implants. This process creates a dense, protective oxide surface layer that increases surface hardness, reduces friction, prevents cold welding/galling between screw threads and plate holes, and improves fatigue resistance.
Our cervical and lumbar fusion cages are manufactured using medical-grade PEEK-OPTIMA (ASTM F2026), offering an elastic modulus close to natural bone for reduced stress shielding. They feature embedded Tantalum pins (ASTM F560) for clear X-ray radiolucency and verification.
Partner with a Trusted CE Certified Orthopedic Manufacturer
Whether you require ready-to-ship CE trauma plates, spinal systems, vertebroplasty kits, or custom 5-axis CNC OEM manufacturing, our engineering team is ready to support your business requirements.
