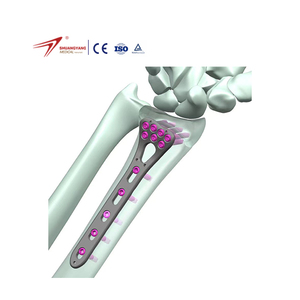

High Quality Orthopedic Implant Trauma Multi-axial Distal Radius Locking Plates and Screws

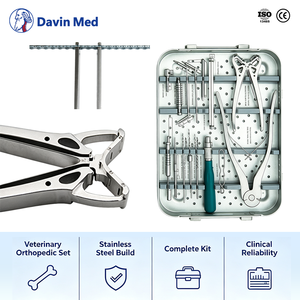

Veterinary 2.4mm ALPS-S Locking Plate System Orthopedic Surgical Instrument Set for Small Animal
PEEK Oblique Lateral Lumbar Interbody Fusion Spine Orthopedic Implant OLIF Cage System
Premium Quality 3.5mm Olecranon Locking Plates (3H-7Holes L/R) with Screw & 121 Pcs Instrument Set

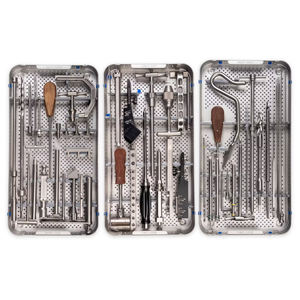

PFNA Intramedullary Nail Instrument Kit Manual Proximal Femoral Nail Anti-Rotation System
Professional Physiotherapy Laser Device (810/980/1064nm) Deep Tissue Repair & Pain Relief
Titanium Clavicle Hook Locking Compression Plate for Acromioclavicular Joint Fixation
CE Certified Posterior Orthopedic Lumbar Interbody Fusion Cage Instruments (TLIF System)
Executive Summary: The Evolution of 2.0mm Mini Plate Systems in Modern Micro-Fixation
In contemporary orthopedic, craniomaxillofacial (CMF), and podiatric surgery, anatomical reconstruction of delicate osseous structures demands an intricate balance between rigid biomechanical stabilization and ultra-low-profile construct geometry. The 2.0mm mini plate system represents the gold standard in micro-fragment fracture reduction, non-union management, and corrective osteotomies. As global surgical teams transition toward minimally invasive techniques and rapid post-operative rehabilitation protocols, procurement directors and medical device importers are placing heightened emphasis on manufacturing precision, fatigue resistance, and sterile supply chain security.
As a premier 2.0mm mini plate system exporter and custom OEM medical contract manufacturer, Orthi Medical Co., Ltd. combines state-of-the-art 5-axis CNC machining, micro-deburring, surface anodization, and Class 100,000 cleanroom packaging to support medical distributors across Europe, the Americas, the Middle East, and Asia-Pacific. This technical whitepaper delves into the engineering parameters, clinical indication dynamics, global procurement trends, and regulatory compliance standards governing 2.0mm mini plate system sourcing.
Biomechanical Architecture & Engineering Specifications of 2.0mm Mini Systems
The structural integrity of a 2.0mm mini fixation system depends on precise tolerances during manufacturing. Micro-fixation implants must resist high cyclic shear, torsional forces, and bending moments despite reduced cross-sectional mass. Below is a detailed engineering parameter matrix illustrating the structural benchmarks of Orthi Medical's 2.0mm mini locking and non-locking plate systems.
| System Parameter | 2.0mm Standard Mini Plate | 2.0mm Mini Locking Compression Plate (LCP) | 2.0mm CMF / Hand System |
|---|---|---|---|
| Raw Material Specification | Pure Titanium TA3 / ASTM F67 Grade 4 | Ti-6Al-4V ELI / ASTM F136 Grade 5 | ASTM F136 Titanium / PEEK Option |
| Plate Thickness Profile | 1.0 mm – 1.2 mm | 1.2 mm – 1.5 mm | 0.8 mm – 1.0 mm Ultra-low profile |
| Screw Core Diameter | 1.5 mm | 1.5 mm (Threaded Head) | 1.4 mm |
| Screw Outer Diameter | 2.0 mm Emergency: 2.3 mm | 2.0 mm Locking / Cortex | 2.0 mm Micro-Screw |
| Tensile Strength (MPa) | ≥ 680 MPa | ≥ 930 MPa | ≥ 930 MPa |
| Surface Treatment | Type II Hard Anodization (Color Coded) | Electrolytic Anodization (Gold/Blue/Pink) | Bio-inert Anodized Anti-glare Satin |
| Sterilization Option | Non-Sterile Box / Gamma Sterilized Pack | Co-60 Gamma Sterilized (SAL 10⁻⁶) | Individual Sterile Blister Packaging |
The mechanical behavior of the 2.0mm system relies heavily on the thread pitch design of the locking screw. Featuring a fine 0.8mm pitch profile, the 2.0mm locking screw maximizes core thread engagement within cortical bone fragments as thin as 1.5mm. Furthermore, the conical threaded head engages directly with the internal thread of the plate hole, creating a rigid fixed-angle construct. This dynamic prevents primary loss of reduction and eliminates bone compression against the plate, preserving delicate periosteal vascularization crucial for rapid callus formation.
Core Technological Attributes of Advanced 2.0mm Micro-Plates
Fixed-Angle Locking Stability
Threaded locking holes prevent screw toggling under cyclic loads, maintaining anatomical alignment even in osteopenic bone structures.
Anatomical Pre-Contouring
Pre-shaped plate configurations (Straight, T-Plate, Y-Plate, L-Plate, Grid, and Web shapes) minimize intraoperative bending cycles and fatigue stress.
Tissue Preservation Profile
Tapered plate edges and recessed screw pockets yield a smooth surface transition, preventing soft-tissue friction, tendon irritation, or skin breakdown.
Future Procurement Trends in Orthopedic Micro-Fixation (2025–2030)
Global healthcare procurement models are undergoing structural transformation. Supply chain managers are moving away from fragmented, single-category vendors in favor of integrated original equipment manufacturers capable of delivering certified, end-to-end orthopedic ecosystems. Key market forces shaping the procurement of 2.0mm mini plate systems include:
- Accelerated Shift Toward Pre-Sterilized Implants: Hospital operating rooms are actively seeking to eliminate the labor cost, sterilization validation overhead, and contamination risk associated with tray washing. Ready-to-use, Co-60 Gamma-irradiated sterile 2.0mm mini plate kits with 5-year shelf-life validation are rapidly replacing non-sterile inventory.
- Consolidation of OEM/ODM Manufacturing Partners: Importers in North America, Western Europe, and LATAM are consolidating vendor bases by partnering with ISO 13485-certified Asian exporters capable of drawing-based custom manufacturing, color anodizing, and laser engraving under full private-label agreements.
- Rigorous Regulatory Traceability (UDI Compliance): Global regulatory agencies (US FDA, EU MDR 2017/745, NMPA) enforce Unique Device Identification (UDI) marking down to the micro-implant level. Leading exporters must provide direct laser-etched matrix coding even on 2.0mm mini plates and screw caddies.
- Demand for Multi-Specialty Modular Instrument Trays: Surgical teams require versatile instrument containers housing color-coded drills, self-holding screwdrivers, plate benders, and depth gauges compatible with 1.5mm, 2.0mm, and 2.4mm mini systems in a unified sterilization cassette.
Technological & Manufacturing Innovations Driving Exporter Competitiveness
To maintain leadership as a trusted 2.0mm mini plate system exporter, advanced manufacturing infrastructure is mandatory. Precision at the sub-millimeter scale requires eliminating micro-burrs and tool deflection during machining. At Orthi Medical, our manufacturing facility incorporates several breakthrough technologies:
5-Axis High-Speed Swiss CNC Machining
Enables single-pass machining of complex 2.0mm plate geometries and miniature screw threads, guaranteeing dimensional concentricity and thread pitch tolerance within ±0.005mm.
Electrolytic Surface Passivation & Anodization
Type II titanium anodization creates a bio-inert titanium oxide surface layer that enhances fatigue resistance while providing clear intraoperative color-coding for rapid size identification.
Automated Optical Quality Inspection (AOI)
100% vision-guided inspection systems scan screw threads, plate hole countersinks, and edge radii to ensure absolute zero-defect delivery before cleanroom packaging.
Validated Gamma Sterilization Facility
Co-60 Gamma radiation processing achieving a Sterility Assurance Level (SAL) of 10⁻⁶ in accordance with ISO 11137 standards, suitable for immediate hospital distribution.
Why Orthi Medical is the Top Trusted 2.0mm Mini Plate System Partner
Selecting an orthopedic manufacturing partner directly influences clinical outcomes, market registration speed, and brand equity. Orthi Medical Co., Ltd. stands at the forefront of medical device manufacturing, offering comprehensive solutions tailored to hospital suppliers, regional brand owners, and OEM clients worldwide.
Our enterprise advantage encompasses six core pillars:
- Full Portfolio Integration: In addition to 2.0mm mini locking plate systems, Orthi Medical exports trauma locking plates (distal radius, olecranon, clavicle hook), spine fixation cages (PEEK OLIF/TLIF), intramedullary nails (PFNA, Tibial), sports medicine suture anchors, and biportal endoscopic imaging systems.
- Complete Regulatory Technical Files: We provide full technical documentation (STED format), biocompatibility test reports (ISO 10993), clinical evaluation reports (CER), and sterilization validation data to streamline your national medical device registration (CE, FDA, NMPA, ANVISA, SFDA).
- Extensive Custom OEM/ODM Capabilities: From modifying existing plate profiles to developing proprietary surgical instrument sets, our dedicated biomedical engineering team turns customer CAD drawings into functional prototypes within short lead times.
- Surgeon Education & Clinical Support: We empower distributors by providing comprehensive surgical technique manuals, cadavoric workshop materials, sawbone demonstration models, and video guides to train local surgical teams effectively.
Frequently Asked Questions (FAQ)
Answers to common technical, manufacturing, and international export inquiries regarding our 2.0mm mini plate systems and OEM services.
What raw materials are used in Orthi Medical’s 2.0mm mini plate systems?
Our 2.0mm mini plate systems are manufactured using medical-grade Titanium Alloy (Ti-6Al-4V ELI / TC4 complying with ASTM F136) for high-strength locking constructs, or commercially Pure Titanium (TA2/TA3 complying with ASTM F67) for malleable CMF plates. Every material lot comes with raw material mill test certificates guaranteeing mechanical integrity and biocompatibility.
Can 2.0mm mini plates be delivered pre-sterilized for direct OR use?
Yes. Bone plates, bone screws, and cannulated screws can be supplied in sterile blister packaging processed via Cobalt-60 (Co-60) Gamma irradiation. Our sterilization procedures achieve a Sterility Assurance Level (SAL) of 10⁻⁶ in full compliance with ISO 11137 standards, offering a 5-year validated shelf life.
What OEM, ODM, and private labeling services do you provide?
We offer complete OEM/ODM contract manufacturing, including CNC machining based on customer CAD/CAM drawings, customized plate profile contouring, electrolytic color anodization (gold, blue, green, magenta), custom laser etching of logos and UDI barcodes, custom instrument tray design, and private-label box packaging.
How does the 2.0mm locking mechanism compare to non-locking mini systems?
The 2.0mm locking plate system features threaded hole geometries that engage with the threaded head of the 2.0mm locking screw, forming a rigid fixed-angle construct. This mechanism eliminates the need for precise anatomical plate friction against bone, prevents primary reduction loss, reduces stress on periosteal blood supply, and provides superior pull-out resistance in osteoporotic bone.
What international quality management certifications does Orthi Medical hold?
Orthi Medical operates strictly under ISO 13485 (Medical Devices Quality Management System) and ISO 9001 certifications. Applicable product families carry European CE mark approval. Our technical files comply with EU MDR requirements, facilitating streamlined registration for distributors worldwide.
