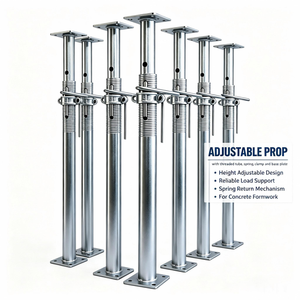

Base Plate Top Plate Acrow Prop 2.0-3.5m for Bridge Deck and Beam Support EN1065 Q235 Q345 Steel

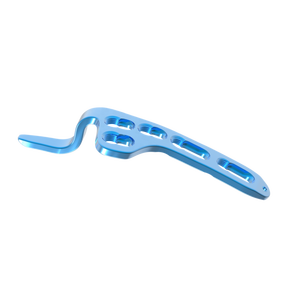

Hot Sell Clavicular Hook Locking Plate Titanium Orthopedic Bone Implants Interventional Materials Factory Direct

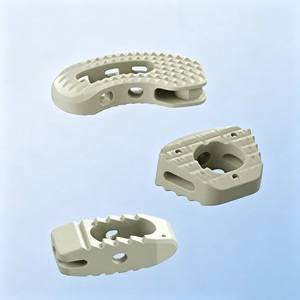

High Biocompatible PEEK Cervical Cage With Screw Anterior Cervical Fusion Cage Spinal Implant
Global Manufacturing Capability & Compliance Standard
Orthi Medical (Canwell Medical OEM Division) delivers end-to-end orthopedic solutions certified under rigorous international standards.
Patella Locking Plate Systems: Clinical Biomechanics, Material Engineering & Sourcing Evaluation
Patellar fractures account for approximately 1% of all skeletal injuries in adult trauma care. Given the patella's central biomechanical role as the primary fulcrum of the knee extensor mechanism, achieving anatomical reduction, articular congruity, and rigid internal fixation is paramount. Traditional tension band wiring (TBW) techniques using Kirschner wires and stainless steel cables have historically yielded high rates of symptomatic hardware prominence, wire displacement, skin irritation (up to 35-60%), and loss of reduction in osteoporotic or comminuted C3-type fractures. This whitepaper systematically evaluates the biomechanical paradigms, metallurgical advances, and strategic sourcing parameters of modern anatomical patella plate systems manufactured by leading China orthopedic OEM suppliers.
1. Biomechanical Evolution: Tension Band Wiring vs. Anatomical Locking Plates
The human patella endures exceptional tensile and compressive forces, with joint reaction forces exceeding 3.3 times body weight during stair climbing and up to 7.8 times body weight during deep knee flexion. Under such strenuous dynamic loads, stable fixation of transverse, stellate, and complex multi-fragment distal or proximal pole fractures requires implants capable of resisting shear dynamic forces.
Comparative biomechanical cadaveric testing demonstrates that multi-directional Anatomical Patella Locking Compression Plates (ALCP) deliver significantly higher construct stiffness, superior load-to-failure thresholds, and reduced interfragmentary displacement compared to modified tension band wiring. While TBW converts anterior tensile forces into dynamic articular compression, it relies heavily on intact anterior cortical bone stock. In comminuted fractures, TBW fails to provide angular stability, often precipitating anterior gapping and patellofemoral joint incongruity.
Multi-Planar Angular Stability
Integrated threaded locking holes allow 2.4mm/2.7mm locking screws to thread directly into the plate, forming a rigid fixed-angle construct that prevents screw back-out and toggling under high quadriceps tension.
Low-Profile Edge Chamfering
Engineered with a profile thickness of 1.2mm to 1.5mm and polished round contours, minimizing soft-tissue friction, bursitis, and the necessity for secondary implant removal surgeries.
Anatomical Pre-Contoured Geometry
Designed based on 3D CT statistical shape models of Asian and Western populations, eliminating the need for intraoperative plate bending and protecting the delicate vascular supply of the patella.
2. Material Science: Titanium Alloy (Ti-6Al-4V ELI) vs. Commercially Pure Titanium
Implant material selection dictates corrosion resistance, fatigue life, and post-operative radiological evaluation. Premier China OEM manufacturers utilize certified implant-grade titanium alloys conforming strictly to ASTM standards:
- Titanium Alloy (Ti-6Al-4V ELI / ASTM F1472): Offers an ultimate tensile strength exceeding 930 MPa and fatigue strength capable of enduring 10 million cycles without structural micro-fracture. The low modulus of elasticity (~110 GPa) closer to human cortical bone minimizes stress shielding while ensuring maximum construct rigidity.
- Commercially Pure Titanium (CP-Ti Grade 4 / ASTM F67): Provides superior ductility for specialized malleability requirements in soft-tissue rim plates, while maintaining biocompatibility and excellent MRI artifact suppression.
- Anodized Micro-Surface Passivation: Advanced Type II electrochemical anodization forms a compact titanium oxide (TiO2) layer, drastically lowering ion release rate and eliminating galling risks between screw threads and plate locking holes.
3. Technical Innovations in Patella Fixation Systems
Modern patella plate architectures cater to distinct fracture patterns classified under the AO/OTA system (34-A extra-articular, 34-B partial articular, and 34-C complete articular fractures):
| Implant Variant | Target AO/OTA Fracture Class | Screw Diameter Range | Key Mechanical Feature |
|---|---|---|---|
| Star / Spider Anatomical Plate | 34-C2 / 34-C3 Multi-fragmentary comminuted | 2.4 mm / 2.7 mm Variable Angle Locking | Radiating legs wrap around superior/inferior poles; captures small peripheral fragments. |
| Bilateral Rim Locking Plate | 34-B1 / 34-B2 Longitudinal vertical fractures | 2.7 mm / 3.5 mm Locking & Cortex Screws | Placed along medial and lateral margins; avoids anterior patellofemoral contact zone. |
| Inferior Pole Basket / Hook Plate | 34-A1 Avulsion & distal pole fractures | 2.0 mm / 2.4 mm Cannulated / Locking Screws | Contoured distal hooks secure patellar tendon junction; replaces suture anchor wiring. |
| Transverse Compression Mesh Plate | 34-C1 Simple transverse fractures | 2.7 mm Compression & Dynamic Locking | Central slots allow active interfragmentary compression prior to final locking screw insertion. |
Future Procurement Trends in Global Trauma Sourcing
Navigating regulatory shifts, supply chain resilience, and technological advancements in orthopedic implant manufacturing.
1. Shift to Co-60 Gamma Sterile Single-Pack Kits
Global hospital procurement boards are rapidly transitioning away from non-sterile bulk implants requiring costly in-house autoclave reprocessing. Pre-packaged, sterile implants irradiated by Cobalt-60 (SAL 10-6) reduce hospital operating theater prep time by 25% and virtually eliminate cross-contamination risks.
2. Supply Chain Consolidation & OEM Private Labeling
Distributors are consolidating vendors by partnering directly with China Tier-1 OEM manufacturers capable of providing complete private label solutions—including customized CNC laser marking, localized color anodization, custom packaging, and complete CE/ISO technical dossiers for regional registration.
3. Additive Manufacturing & Bioabsorbable Innovations
Emerging research points toward 3D porous titanium lattice structures for osteochondral defects and magnesium-zinc bioabsorbable screws for tension band anchoring, eliminating secondary removal operations. China OEM R&D centers are leading pilot clinical trials in these next-generation materials.
Orthi Medical: Enterprise Advantage & Global Quality Assurance
As a dedicated medical device manufacturer and OEM partner, Orthi Medical Co., Ltd. integrates state-of-the-art manufacturing technology with rigorous regulatory compliance to support orthopedic brands worldwide.
ISO 13485 & CE Compliance
Our quality management system is fully certified under ISO 13485 and ISO 9001. Implant raw materials adhere strictly to ASTM F67 (pure titanium) and ASTM F1472 (Ti-6Al-4V) standards with complete mill test certificate traceability for every lot.
Precision 5-Axis CNC Machining
Equipped with high-precision Swiss-type CNC lathes and 5-axis machining centers from DMG MORI and Citizen, maintaining dimensional tolerances within ±0.005 mm for intricate bone screw threads and low-profile locking plates.
Surgeon Education & Clinical Support
We empower our international distributors through comprehensive surgical technique guides, sawbones training sets, cadaver workshop support, and academic conference participation to ensure seamless hospital adoption.
