Featured 2.4mm Mini Plate Systems & Surgical Kits
Precision-machined locking plates, mesh implant kits, ALPS contour systems, and micro-fragment sets engineered for human craniomaxillofacial/hand surgery and veterinary orthopedic reconstruction.

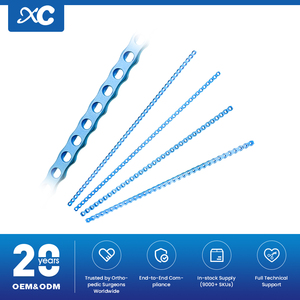

Small Animal Vet Surgery Mini Locking Plate System (2.4mm ALPS)
Low-profile titanium locking plate kit optimized for feline and small canine orthopedic fracture fixation with biological land-point contouring.
Get a Quote
Surgical Small Animal Veterinary ALPS 2.4mm Locking Plate Kit System
Complete instrument set featuring micro-drill bits, variable-angle sleeve guides, and high-tensile 2.4mm titanium locking screws.
Get a Quote
Maxillofacial Mini Arc Bridge Instrument Set 2.4 Surgical Bone Mesh
3D malleable titanium mesh plate system designed for severe orbital, zygomatic, and mandibular reconstructive procedures.
Get a Quote

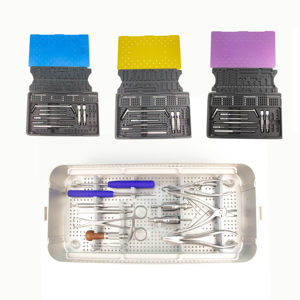

Orthopedic Mini Fragments 1.5mm, 2.0mm, 2.4mm Locking Plate Set
Multi-modular fragment fixation system engineered for distal radius, periarticular hand fractures, and foot osteotomies.
Get a Quote
Veterinary 2.4mm ALPS-S Locking Plate System Set
Advanced low-contact surface design that minimizes periosteal vascular compromise during feline and small breed fracture healing.
Get a Quote
Orthopedic Implant 1.5mm / 2.0mm / 2.4mm Micro Plate System
Ultra-thin, anodized bone fixation plates paired with self-tapping micro screws for delicate head and neck surgical reconstruction.
Get a Quote
Veterinary Orthopedic 2.4mm ALPS-II Mini Titanium Locking Plate
CE and ISO certified titanium mini plate specifically calibrated for toy breed dogs, offering superior fatigue resistance.
Get a Quote
Transforaminal Lumbar Interbody Fusion (TLIF) PEEK Cages
Radiolucent polymer fusion implants (7*10*28 & 8*10*28mm) featuring tantalum radiopaque markers and bullet-nosed insertion geometry.
Get a QuoteEngineering & Biomechanical Landscape of 2.4mm Mini Locking Plate Systems
Micro-fragment internal fixation represents one of the most demanding sub-specialties in modern orthopedic surgery. The 2.4mm mini plate system serves as the biomechanical backbone for reconstructive procedures requiring high anatomical fidelity and rigid stability despite minimal bone stock.
Low-Profile Biological Contouring (ALPS)
Modern 2.4mm ALPS (Advanced Locking Plate System) designs utilize scalloped under-cuts and contact points. This minimizes direct contact between the titanium surface and the periosteum, preserving micro-vascular blood supply and accelerating primary bone healing.
Dual Locking Mechanics & Thread Pitch
By combining conical locking thread geometries with standard cortical screw options, surgeons achieve rigid angular stability. This prevents screw back-out and eliminates primary reduction loss in osteopenic bone structures.
Metallurgical Precision (ASTM Standards)
Manufactured under strict ISO 13485 protocols using unalloyed Grade 2/3 Titanium (ASTM F67) for high-malleability mesh plates, and Ti-6Al-4V ELI (ASTM F1472) for high-stress load-bearing mini locking plates.
Whether utilized in human hand, wrist, and craniomaxillofacial procedures or applied in veterinary orthopedics for toy dog breeds and felines, the 2.4mm mini plate system requires strict dimensional tolerances (±0.005mm). The integration of variable-angle locking holes permits localized screw angling up to 15 degrees off-axis, affording unmatched intraoperative flexibility around articular surfaces.
Evaluation Benchmark for Selecting 2.4mm Mini Plate Suppliers
Procurement officers and medical device distributors must evaluate manufacturers across critical technical dimensions to ensure clinical reliability and seamless regulatory registration.
1. Swiss-Type CNC Machining & Micro-Tolerance Control
Miniature screws (2.4mm outer thread diameter, 1.8mm core diameter) demand high-precision 5-axis Swiss sliding-headstock CNC turning. Leading manufacturers maintain tolerance windows within ±0.005mm to ensure thread engagement without stripping risk.
2. Surface Anodization & Fatigue Resistance (ASTM F382)
Electrochemical Type II anodization eliminates surface micro-cracks and enhances fatigue life under cyclic bending loads. Color-coded anodization (e.g., gold for 2.0mm, blue for 2.4mm, green for 2.7mm) prevents cross-contamination during surgery.
3. Cleanroom Packaging & Gamma Sterilization Validation
Global distributors increasingly demand ready-to-use, single-pack sterile implants. Production must occur within ISO Class 7 cleanrooms, backed by Co-60 gamma sterilization achieving a Sterility Assurance Level (SAL) of 10-6 per ISO 11137.
4. Regulatory Dossier Quality (MDR & FDA 510k Support)
A reliable manufacturer must provide complete technical files, including biomechanical test reports (static bending, dynamic fatigue per ASTM F382), biocompatibility evaluations (ISO 10993), and clinical evaluation reports (CER).
Top 10 2.4mm Mini Plate System Manufacturers & Exporters
A comparative evaluation of leading global orthopedic brands and OEM exporters specializing in 2.4mm mini plate technology, raw material standards, and custom manufacturing capabilities.
| Manufacturer Name | HQ Country | Core Material Specs | Primary Clinical Focus | OEM / ODM Flexibility | Sterilization Options |
|---|---|---|---|---|---|
| Orthi Medical (Canwell) | China | ASTM F1472 TC4 / ASTM F67 TA2 | Trauma, ALPS Vet, Maxillofacial | High (Custom Trays/Marking) | Co-60 Gamma (SAL 10-6) / Non-sterile |
| DePuy Synthes (J&J) | USA / Switzerland | Ti-6Al-7Nb / Commercial Pure Ti | Cranio-Maxillofacial & Hand Trauma | Low (Standardized Catalog) | Sterile Double Blister Pack |
| Stryker Trauma | USA / Germany | Ti-6Al-4V ELI / Stainless Steel | Micro Fragment & Extremities | Low (Proprietary Systems) | Pre-sterilized Trays |
| KLS Martin Group | Germany | Titanium Grade 4 / Grade 5 | CMI & Hand Surgery Specialists | Limited Contract OEM | Sterile Pack & Autoclave Trays |
| CZMEDITECH | China | ASTM F67 / ASTM F138 316L | Maxillofacial Mesh & Trauma | High OEM Capability | Non-sterile / Cleanroom Pack |
| Zimmer Biomet | USA | Ti-6Al-4V ASTM F136 | Small Fragment & Reconstruction | Low | Sterile Packaged |
| B. Braun (Aesculap) | Germany | Implantan® Pure Titanium | Cranial & Hand Fixation | Medium | Sterile Single Unit |
| Arthrex | USA | Titanium & PEEK Composite | Sports Med & Small Fragment | Low | Sterile Boxed |
| Medartis AG | Switzerland | TriLock® Pure Titanium | APTUS Hand & Wrist Systems | Low | Sterile Container System |
| Globus Medical | USA | Ti-6Al-4V / PEEK Polymer | Extremities & Spine Implants | Low | Sterile Packaged |
1. Orthi Medical Co., Ltd. (Global OEM Leader)
Orthi Medical has emerged as a premier contract manufacturer and direct exporter of 2.4mm mini plate systems. Utilizing state-of-the-art Japanese 5-axis CNC machining centers and ISO Class 7 cleanrooms, Orthi Medical offers both standard catalog systems and high-precision OEM customization. Their ALPS (Advanced Locking Plate System) series for small animal veterinary surgery and human mini-fragment fixation features biological contact contouring, laser-etched lot traceability, and Co-60 gamma sterilization (SAL 10-6).
2. DePuy Synthes (Johnson & Johnson)
Synthes remains a global pioneer in AO-foundation orthopedic standards. Their 2.4mm Compact Hand and CMF locking systems feature patented thread geometries and specialized contouring instruments. While offering premium clinical documentation and worldwide surgeon network training, their solutions carry a high price point and rigid minimum purchasing configurations for international distributors.
3. KLS Martin Group
Headquartered in Tuttlingen, Germany, KLS Martin focuses heavily on craniomaxillofacial (CMF) implants and micro hand plates. Their 2.4mm titanium mesh and arc bridge plates are recognized for high biological compatibility and exact malleability. They primarily serve high-end European and North American hospital groups with pre-configured instrument trays.
4. CZMEDITECH
Specializing in maxillofacial mesh plates and small fragment trauma kits, CZMEDITECH delivers high-volume 2.4mm mini plates in both pure titanium and surgical stainless steel. Their offerings provide cost-effective solutions for emerging markets, backed by ISO 13485 quality certifications and flexible OEM private labeling.
Future Procurement Trends in 2.4mm Mini Plate Systems
Technological shifts, supply chain restructuring, and veterinary market growth are reshaping how hospitals and distributors procure micro-fragment orthopedic implants.
Expansion of Veterinary ALPS Systems
The global companion animal health market is experiencing exponential demand for specialized 2.4mm mini locking plates. Veterinary surgeons are replacing traditional non-locking compression plates with ALPS-II and ALPS-S systems to treat complex fractures in toy breed dogs and cats, dramatically reducing non-union rates.
Shift to Single-Use Gamma Sterile Packaging
Hospitals and ambulatory surgical centers are phasing out non-sterile bulk implants due to high reprocessing costs and cross-contamination risks. Pre-packaged, individual sterile implants (Co-60 gamma irradiated, 5-year shelf life) streamline inventory control and guarantee operating room sterility.
Direct OEM Sourcing & Private Labeling
Regional medical distributors are bypassing tier-1 brand markups by partnering directly with ISO 13485 certified OEM manufacturers. Direct supply contracts enable custom color anodization, private label laser marking, and localized regulatory submission dossiers at competitive price points.
Metallurgical Specifications & Screw Thread Mechanics
Understanding the material science behind 2.4mm mini locking plates ensures clinical safety and prevents implant failure under complex biomechanical stress.
Pure Titanium (ASTM F67) vs Titanium Alloy (ASTM F1472)
Choice of raw material depends entirely on the anatomical requirement:
- Unalloyed Pure Titanium (TA2 / TA3): Tensile strength between 400 MPa and 500 MPa. Excellent ductility and malleability, making it the material of choice for 3D orbital mesh plates and contourable maxillofacial plates.
- Titanium Alloy Ti-6Al-4V ELI (TC4 / Grade 5): Yield strength exceeding 860 MPa and tensile strength ≥ 930 MPa. Essential for load-bearing 2.4mm mini locking plates used in metacarpal, distal radius, and veterinary femoral fractures.
Variable-Angle Locking Mechanism Design
Standard mini locking plates restrict screw insertion to a fixed 90-degree angle relative to the plate surface. Advanced 2.4mm systems incorporate spherical thread locking caps and deformable plate holes, enabling multi-directional trajectory adjustment up to ±15° without reducing locking strength.
Why Global Procurement Teams Partner with Orthi Medical
Orthi Medical Co., Ltd. integrates complete in-house manufacturing, rigorous quality inspection, and international regulatory support for orthopedic distributors worldwide.
ISO 13485 & CE Certified
Operating under certified ISO 13485 and ISO 9001 quality management systems. Product lines carry full CE compliance documentation for fast regional registration.
Full Portfolio Sourcing
Consolidate your orthopedic catalog with one trusted manufacturer: Trauma plates, Spine pedicle screws, Sports Medicine anchors, Joint Arthroplasty, and Stents.
OEM & Private Labeling
From blueprint drawing conversion to laser-marking, custom anodized color-coding, and dedicated surgical tray design, we deliver market-ready OEM solutions.
Purchasing & Technical FAQ: 2.4mm Mini Plate Systems
Key answers to essential questions regarding raw materials, sterilization, minimum order quantities (MOQ), and OEM customization for B2B importers.
