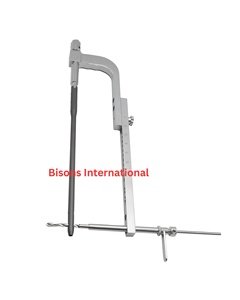

BISONS High Quality Manual Orthopedic Stainless Steel PFNA Proximal Femoral Nail Anti-Rotation Intramedullary Nail System CE
Precision ISO 13485 CNC Machining Stainless Steel Medical Parts Arthroscopic Shaver Blade Burr Tip Orthopedic Sports Medicine
Premium Orthopedic Veterinary Trauma Implant Surgical Instrument - Titanium TTA Implant for Animal Orthopedic Trauma Surgery
Engineering & Sourcing Guide for Medical-Grade Locking Screws
A complete biomechanical, metallurgical, and regulatory guide for hospital procurement managers, medical device brand owners, and OEM implant distributors worldwide.
Information Gain Executive Summary: Modern orthopedic fracture repair relies on angular-stable construct mechanics. Unlike conventional cortical screws that depend on bone-plate friction, orthopedic locking screws thread directly into the bone plate, creating a fixed-angle construct. This technical whitepaper explores metallurgical standards (ASTM F136 vs. ASTM F67 vs. ASTM F138), micro-machining tolerances, thread pitch geometry, and global OEM contract manufacturing protocols.
1. Biomechanical Fundamentals: Locking Compression Screws vs. Standard Fasteners
In modern traumatology, the evolution from dynamic compression plating (DCP) to locking compression plating (LCP) represents a paradigm shift in internal fixation. Standard cortical screws rely entirely on friction generated between the plate and the underlying periosteum. In osteoporotic bone or complex comminuted fractures, traditional screws risk toggle, loosening, and loss of reduction due to inadequate pullout strength.
Conversely, medical locking screws feature a threaded head that engages mating threads within the plate hole. This mechanical lock transforms the screw-plate assembly into a rigid, fixed-angle construct. Biomechanically, load distribution transitions from compressive friction to shear force transfer along the screw shaft. This reduces the risk of primary dynamic failure, prevents periosteal stripping, and preserves vascular supply beneath the plate—critical factors for primary bone healing.
| Material Specification | Standard Reference | Tensile Strength (MPa) | Yield Strength (MPa) | Biocompatibility & Clinical Application |
|---|---|---|---|---|
| Ti-6Al-4V ELI (Grade 23) | ASTM F136 / ISO 5832-3 | ≥ 860 - 930 | ≥ 795 - 860 | High fatigue strength; ideal for load-bearing trauma locking screws & IM nails. |
| Pure Titanium (TA2 / Grade 2) | ASTM F67 / ISO 5832-2 | ≥ 345 | ≥ 275 - 450 | Excellent ductility; suitable for malleable low-profile rib & cranial plates. |
| Pure Titanium (TA3 / Grade 3) | ASTM F67 / ISO 5832-2 | ≥ 450 | ≥ 380 - 550 | Balanced strength & contourability; utilized in small-fragment locking constructs. |
| Stainless Steel 316LVM | ASTM F138 / ISO 5832-1 | ≥ 860 - 1100 | ≥ 690 - 890 | High modulus of elasticity; economical trauma screws, veterinary implants & PFNA sets. |
2. Precision Machining & Geometric Profiling of Medical Locking Screws
Manufacturing high-performance locking screws requires sub-micron level CNC accuracy. Screw thread geometry directly impacts insertion torque, pullout resistance, and mechanical engagement with bone tissue. At Orthi Medical, our multi-axis CNC Swiss machining centers adhere to strict design metrics:
Star-Drive (Torx) Recesses
Recessed Star/Torx drive heads optimized to eliminate cam-out, maximize torque transmission efficiency, and reduce driver bit stripping during intraoperative insertion.
Double-Lead Thread Pitch
Advanced double-lead geometries cut insertion time by 50%, providing smooth cortical biting while maintaining maximum axial pullout resistance.
Self-Tapping Flutes
Engineered self-tapping cutting flutes clear bone debris efficiently during advancement, eliminating the need for intraoperative tapping step and shortening surgical times.
3. Global Procurement Trends in Orthopedic Fasteners & Implants (2025–2030)
Medical device sourcing managers face shifting regulatory demands, rising hospital purchasing standards, and supply chain consolidation. Key trends transforming the orthopedic fastener market include:
- Transition to Ready-to-Use Gamma Sterilised Packs: Hospitals are aggressively phasing out in-house autoclave processing to cut costs and minimize nosocomial infection risks. Sterile pre-packaged screws certified to SAL 10⁻⁶ are rapidly replacing non-sterile inventory trays.
- Growth in OEM Color Anodization & Laser Coding: Surface treatments, including Type II electrochemical anodization and Type III hard anodization, are critical for intraoperative color-coding. Diameter-specific colors prevent misapplication of screws during trauma surgeries.
- Expansion into Veterinary Trauma Systems: The veterinary orthopedic sector is adopting human-grade locking plate and screw technology (e.g., TTA and TPLO implants) for canine and feline limb reconstruction.
- Consolidated Full-Portfolio Supplier Contracts: Procurement teams prefer unified contract manufacturers capable of supplying trauma screws, intramedullary nails, spinal pedicle systems, and sports medicine consumables under one quality system.
Orthi Medical OEM/ODM Capabilities & Quality Ecosystem
As a recognized orthopedic implant manufacturer, Orthi Medical Co., Ltd. brings decades of precision manufacturing, engineering excellence, and global compliance support.
ISO 13485 & CE Quality System
Our state-of-the-art facility operates under strict ISO 13485 and ISO 9001 certified Quality Management Systems. Full production lot traceability guarantees compliance with international regulatory bodies.
Custom Blueprint Machining (OEM/ODM)
We convert technical CAD/CAM drawings into finished products. Custom dimensions, unique thread pitches, surface anodization, laser marking, and dedicated surgical trays are tailored to your requirements.
Class 100,000 Cleanroom Packaging
Our automated cleanroom facilities provide double-blister sterile packaging, labeled with GS1 UDI-compliant barcodes, sterilized via Cobalt-60 gamma radiation for immediate operating room deployment.
Frequently Asked Questions: Sourcing Medical Locking Screws
Answers to common technical, material, and logistics queries from orthopedic brand owners, distributors, and procurement specialists.
What raw material certifications accompany Orthi Medical locking screws?
Can Orthi Medical manufacture custom locking screw geometries via OEM/ODM?
Are your screws supplied sterile or non-sterile?
How do locking screw head threads prevent intraoperative cold welding or galling?
What regulatory files and market authorization support do you offer?
What is your typical production lead time for custom OEM batches?
Partner with a Trusted OEM/ODM Locking Screw Supplier
Ready to streamline your orthopedic supply chain? Connect with our biomedical engineering and OEM contract manufacturing team today for custom quotes, technical drawings review, and sample requests.
