The Engineering Paradigm of Cortical Screw Fixation in Modern Orthopedics
In human and veterinary trauma surgery, cortical bone screws serve as the primary mechanical anchors for rigid internal fixation. Unlike cancellous screws, which are characterized by deeper threads and a wider pitch designed to compress spongy bone structures, cortical screws feature a shallow thread profile, smaller pitch, and a higher core-to-outer diameter ratio. This architecture maximizes mechanical engagement with dense, compact cortical bone walls, providing exceptional torsional stability, axial pullout strength, and shear load resistance under demanding physiological conditions.
As a specialized custom OEM cortical screw manufacturer, Orthi Medical leverages state-of-the-art multi-axis Swiss CNC turning and thread whirling technologies. Precision contract manufacturing of medical-grade screws demands rigorous metallurgical control, intricate micro-geometry cutting, and absolute surface purity. Modern clinical standards require implants that maintain structural integrity while eliminating wear debris, stress risers, and fatigue initiation points.
Technical Insight for Procurement Directors: The mechanical pullout force of a cortical screw is directly governed by its thread shear area, core diameter wall thickness, and outer diameter pitch ratio. Manufacturing thread profiles via single-point threading or thread whirling—rather than traditional cutting—preserves grain boundary alignment and significantly increases fatigue endurance.
Metallurgical Specifications: Titanium Alloys vs. Stainless Steel
Selecting the optimal implant material is paramount to clinical efficacy and regulatory compliance across global markets. Orthi Medical manufactures custom OEM cortical screws using high-grade biocompatible metals adhering to strict international specifications:
| Material Designation | Standard Specification | Tensile Strength (MPa) | Biomechanical & Clinical Advantages |
|---|---|---|---|
| Ti-6Al-4V ELI (TC4 / Grade 5) | ASTM F1472 / ISO 5832-3 | ≥ 930 MPa | Superior strength-to-weight ratio, excellent osseointegration, high fatigue resistance, reduced MRI artifacting. |
| Commercially Pure Titanium (TA2/TA3) | ASTM F67 / ISO 5832-2 | ≥ 400 - 500 MPa | High corrosion resistance, soft tissue tolerance, ideal for non-load bearing contour locking plates. |
| 316L Stainless Steel | ASTM F138 / ISO 5832-1 | ≥ 860 MPa | High shear toughness, cost-effective fracture fixations, superior torsional rigidity during heavy bone tapping. |
| PEEK Optima & Composites | ASTM F2026 | Custom Modulus | Radiolucent properties matching human bone elastic modulus (approx. 3.5 - 18 GPa), eliminating stress shielding. |
Precision Thread Geometry & Drive Mechanism Manufacturing
Orthi Medical's precision engineering team customizes thread profiles and head geometry based on client engineering drawings or custom clinical specifications:
- Self-Tapping vs. Non-Self-Tapping Tips: Self-tapping cortical screws incorporate precision-milled cutting flutes (flute geometries: 2-flute or 3-flute parabolic cutouts) that clear bone chips during insertion, eliminating separate tapping steps in dense cortical walls.
- Hexalobular (Torx / Star) Drive Recesses: Modern surgical screws are rapidly transitioning from legacy Hexagonal drives to Hexalobular (Torx) drive recesses. Hexalobular drives distribute insertion torque across six radial contact surfaces, preventing "cam-out", driver stripping, and head shearing under high seating torque.
- Thread Whirling Technology: Thread whirling utilizes high-speed rotating cutter rings positioned at precise lead angles relative to the titanium bar stock. This continuous process generates burr-free, ultra-smooth thread roots with pitch tolerances controlled within ±0.005mm.
ISO 13485 Certified OEM/ODM Factory Infrastructure

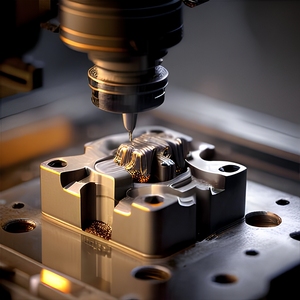

Orthi Medical operates an end-to-end orthopedic manufacturing facility equipped with advanced Japanese Citizen and Star 5-axis Swiss automatic lathes, DMG MORI machining centers, and automated surface treatment plants. Every stage of cortical screw production—from raw bar stock receiving to sterile barrier pouching—is subjected to continuous monitoring under our ISO 9001 and ISO 13485 Quality Management Systems.
Automated Quality Inspection & Metrology
Quality assurance is embedded directly into our production workflow rather than applied as a post-manufacturing check. Our quality control laboratory features:
- Optical Coordinate Measuring Machines (CMM): Automated non-contact dimensional verification for pitch diameter, lead angle, thread depth, and head concentricity.
- Torsional & Pullout Testing Equipment: ASTM F543 compliant mechanical testing to measure insertion torque, removal torque, yield torque, and axial pullout resistance.
- Scanning Electron Microscopy (SEM): Surface analysis to ensure complete absence of embedded tool particles or micro-cracking prior to passivation.
Chemical Anodization, Passivation & Cleanroom Packaging
Biocompatibility requires meticulous post-machining surface treatment. Orthi Medical provides complete, turn-key surface finishing options for OEM clients:
- Citric / Nitric Acid Passivation: Fully compliant with ASTM F86 standards, removing free iron from the surface to foster a passive chromium/titanium oxide protective layer.
- Type II & Type III Electrochemical Anodization: Provides vivid color coding (Blue, Gold, Green, Magenta) for immediate intraoperative identification of screw diameters (e.g., 2.7mm, 3.5mm, 4.5mm cortical screws) while improving surface hardness.
- ISO Class 7 Cleanroom & Gamma Sterilization: Products are washed via automated multi-stage ultrasonic baths using deionized water, bagged in Tyvek packaging within an ISO Class 7 cleanroom, and subjected to Co-60 Gamma Irradiation achieving a Sterility Assurance Level of SAL 10-6.
Global Procurement & Future Technology Trends (2025–2030)
Strategic market forces are reshaping orthopedic hardware supply chains. Discover how leading medical device brands and hospital networks are adapting their contract manufacturing strategies.
1. Pre-Sterilized Ready-to-Use Packaging
Hospitals are aggressively phasing out bulk, non-sterile implant trays requiring costly hospital-side autoclaving and reprocessing. The future of cortical screw procurement lies in individually blister-packed, sterile-sealed units with barcode UDI traceability that reduce hospital-acquired infection (HAI) risks.
2. Bioabsorbable & Magnesium Alloys
Next-generation fixation devices are incorporating absorbable magnesium alloys (WE43) and bio-composites. These materials provide full mechanical structural rigidity during initial bone healing, then gradually degrade into non-toxic metabolites, eliminating secondary surgical removal procedures.
3. EU MDR & FDA Technical Dossier Rigor
Regulatory shifts under EU MDR 2017/745 demand exhaustive material safety data, validated cleanliness certificates, and full manufacturing lot traceability. OEM buyers are consolidating suppliers, choosing factories capable of providing complete Technical Files and CE compliance documentation.
4. Hybrid Additive-Subtractive Manufacturing
Combining 3D-printed porous titanium collar structures with high-speed CNC precision thread whirling allows custom cortical screws to foster osteoinduction near the plate-bone interface while maintaining high-torque insertion strength.
5. Antibacterial Surface Texturing
Advanced physical vapor deposition (PVD) coatings infused with silver nanoparticles (Ag-NPs) or nano-patterned laser surface texturing are emerging to prevent bacterial biofilm formation on orthopedic implants without relying on systemic antibiotics.
6. Strategic OEM Partner Consolidation
Medical brand owners are transitioning away from fragmented machine shops toward unified OEM manufacturers capable of supplying screws, plates, intramedullary nails, and matching surgical instrumentation sets under one roof.
Why Top Global Brands Partner with Orthi Medical
Orthi Medical Co., Ltd. is a premier ISO 13485 certified manufacturer of orthopedic implants, surgical instrument sets, and custom OEM fixation devices. We empower distributors, hospital networks, and medical device brand owners across 60+ countries.
- Full Portfolio Consolidation: Single-source supply for Trauma plates & screws, Spine pedicle systems, Sports medicine PEEK anchors, Hip & Knee arthroplasty, and Endoscopy (UBE).
- Ultra-Tight Tolerances: Precision Swiss 5-axis CNC machining achieving micro-tolerances down to ±0.005mm.
- Certified Raw Materials: 100% material heat-lot traceability backed by ASTM F136 Ti6Al4V ELI and ASTM F138 316L mill certifications.
- Regulatory Support: Registration-ready technical documentation, CE mark alignment, and validated test dossiers for rapid local market registration.
Frequently Asked Questions for Custom OEM Sourcing
Get technical and commercial clarity on custom cortical screw manufacturing, minimum order quantities, regulatory dossiers, and sterilization options.
What raw materials do you utilize for custom OEM cortical screw production?
What are your standard manufacturing tolerances and thread precision capabilities?
Can you supply custom cortical screws pre-sterilized and ready for clinical use?
What is the custom OEM sample production and lead-time workflow?
Do you offer laser marking, anodized color coding, and custom tray design?
How do you support international regulatory submissions (FDA 510k / EU MDR)?
Partner with a Leading Custom Cortical Screw Factory
Whether you require drawing-based contract manufacturing, private-label trauma screw kits, or custom titanium hardware, our engineering team is ready to deliver precision implants to your exact specifications.
