Custom OEM Ankle Arthrodesis Nail Manufacturers & Suppliers

ISO 13485 & CE MDR Compliant Retrograde Tibiotalocalcaneal (TTC) Intramedullary Systems for Global Surgical Brands

Featured Surgical Implants & Instrument Systems
High-precision orthopedic hardware manufactured under rigorous regulatory standards
Wholesale Orthopedic Implants
Wholesale Orthopedic Implants Export Quality Surgical Implant Manufacturer and Supplier
Get Catalog
Distal Radius Locking Plate
Distal Radius Locking Plate Variable Angle Multiaxial Orthopedic Implant Left/Right Titanium CE ISO/TUV OEM Class III
Get Catalog

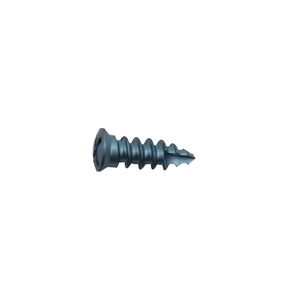

Orthopedic Titanium Self-Tapping Screw
Orthopedic Titanium Self-Tapping Screw Orthopedic Bone Plate Implant Interventional Material For Hospital Use
Get Catalog

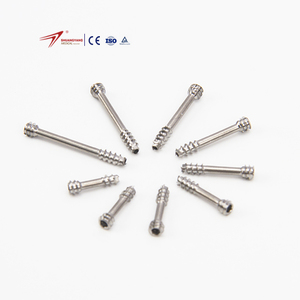

Titanium Herbert Screw
Orthopedic Implant Titanium Herbert Screw Trauma Surgery Headless Compression Cannulated Screw
Get Catalog
Titanium Polyaxial Spine Pedicle Screw
Meditech Factory Price Orthopedic Surgical Implants Titanium Polyaxial Spine Pedicle Screw
Get Catalog
Bone China Plate OEM Engineering
Custom OEM Precision Ceramics & Specialist Implant Material Fabrication Component Line
Get Catalog
CE MDR Certified Electrosurgical Pencil
CE MDR Certified Disposable Electrosurgical Pencil Cautery Diathermy ESU Pencil for Electrosurgical Generator
Get Catalog
Surgical Surgical Tool Motor Set
High Torque Cordless Surgical Handpiece & Precision Orthopedic Micro-Tool Drive Unit
Get Catalog

Engineering & Biomechanical Fundamentals of Tibiotalocalcaneal (TTC) Fusion

Tibiotalocalcaneal (TTC) joint arthrodesis via a retrograde intramedullary nail represents the gold-standard surgical intervention for end-stage ankle osteoarthritis, severe hindfoot deformities, charcot neuroarthropathy, and failed total ankle replacement (TAR) revisions. The clinical objective requires absolute rigid fixation across both the talocrural and sub-talar joint complexes, neutralizing shear forces while encouraging axial load transfer to facilitate rapid bony bridging.

Modern custom OEM ankle arthrodesis nails engineered by ISO 13485 certified medical device contract manufacturers must strike a balance between structural stiffness and micro-motion allowance to suppress stress shielding. Utilization of advanced Ti-6Al-4V ELI (Extra Low Interstitial, ASTM F136 / ISO 5832-3) titanium alloys provides superior yield strength, fatigue endurance, and modulus of elasticity closely matching human cortical bone compared to traditional 316L stainless steel.

930 MPa
Tensile Strength (Ti-6Al-4V)
10M+
Cyclic Fatigue Cycles
SAL 10⁻⁶
Sterility Assurance Level
±0.005mm
CNC Machining Precision

Key Biomechanical Elements in Custom OEM Ankle Nail Development

Internal Dynamic Compression
Integrated internal mechanical compression screws deliver up to 10mm of continuous axial compression, minimizing post-operative joint gapping and hardware loosening.
Multi-Planar Calcaneal Locking
Anatomically angled distal locking screw options (posterior-to-anterior and lateral-to-medial) capture dense calcaneal bone stock to prevent rotational failure.
Valgus Curve Geometry
A 3° to 5° distal valgus bend aligns precisely with the calcaneal entry point and tibial medullary canal, drastically reducing cortical impingement risks.

OEM / ODM Contract Manufacturing & Private Label Capabilities

Navigating the transition from CAD design to commercially viable, mass-produced implant systems demands robust contract manufacturing infrastructure. As an established OEM partner, Orthi Medical provides end-to-end supply chain integration—from raw material forging and 5-axis Swiss CNC milling to surface anodization, cleanroom blister packaging, and regulatory master file generation.

Our plant facilities strictly adhere to ISO 13485 Quality Management Systems and US FDA 21 CFR Part 820 standards. Every batch of custom OEM ankle arthrodesis nails undergoes rigorous quality verification, including Coordinate Measuring Machine (CMM) dimensional checks, material spectral analysis, and mechanical fatigue testing per ASTM F2624 (Standard Test Method for Static and Dynamic Characterization of In-Vitro Intramedullary Fixation Devices).

Specification Parameter Standard OEM Configuration Custom OEM / ODM Option Testing & Compliance Standard
Raw Material Ti-6Al-4V ELI (Grade 23) Custom Cobalt-Chrome / Carbon PEEK ASTM F136 / ISO 5832-3
Nail Diameter Ø10.0mm, Ø11.5mm, Ø13.0mm Ø9.0mm to Ø14.0mm (0.5mm increments) ISO 14630 General Requirements
Nail Length 150mm - 300mm Extended Revision Lengths (up to 420mm) Dimensional CMM Verification
Surface Finish Type II Color Anodization / Micro-blast Custom Color Coding & Laser Etching ASTM F86 Metal Surface Prep
Sterilization Packaging Sterile Double-Blister Tyvek Pouch Non-Sterile Bulk / Custom Branded Kits ISO 11607-1 / Co-60 Gamma SAL 10⁻⁶

Future Procurement & Technological Trends in Ankle Arthrodesis (2025–2030)

The global orthopedic trauma and reconstruction market is undergoing rapid evolution driven by demographic shifts, surgical workflow optimization, and tightening regulatory frameworks (such as Europe's CE MDR transition). Distributors, OEM brand owners, and hospital procurement boards must evaluate dynamic technological shifts when selecting their long-term manufacturing partners:

1. Additive 3D Porous Titanium Integration
Incorporating selective laser melting (SLM) porous titanium structures into the mid-shaft or joint-bridging regions of retrograde nails accelerates osteointegration, reducing fusion times in high-risk non-union patients.
2. Carbon-Fiber Radiolucent Targeters
Hospital procurement managers increasingly favor surgical instrument trays equipped with radiolucent carbon-fiber insertion handles. Carbon handles eliminate image obstruction under C-arm fluoroscopy during distal screw locking.
3. Supply Chain Dual-Sourcing & Resiliency
Global medical brands are moving away from single-region supply chains. Partnering with established Asian OEM hubs offering complete technical dossiers (STEDs) ensures lower production costs without compromising regulatory safety.

Why Partner with Orthi Medical Co., Ltd.?

Orthi Medical Co., Ltd. is a recognized high-tech enterprise specializing in R&D, contract manufacturing, and international distribution of orthopedic implants and surgical instruments. With state-of-the-art 5-axis CNC machining centers, automated cleanrooms, and dedicated quality engineering teams, we empower medical device brands worldwide to launch superior products faster.

Full Product Lifecycle

From conceptual 3D modeling and FEA biomechanical simulation to rapid prototyping and mass production.

Turnkey OEM / Private Label

Custom laser marking, color anodizing, custom instrument tray design, and sterile packaging solutions.

Regulatory Assistance

Complete technical documentation files, bio-compatibility reports, and testing data supporting global registrations.

Frequently Asked Questions (FAQ) for OEM Buyers & Distributors

Detailed answers to standard engineering, procurement, quality control, and regulatory questions regarding Custom OEM Ankle Arthrodesis Nails.

Q: What biocompatible materials are used for custom ankle arthrodesis nails?
We primarily utilize medical-grade Titanium Alloy Ti-6Al-4V ELI (ASTM F136 / ISO 5832-3) and pure titanium options (ASTM F67). Cobalt-Chromium (CoCr) alloy or specialized PEEK components can also be manufactured according to customer technical drawings.
Q: What is the Minimum Order Quantity (MOQ) for custom OEM implant production?
For standard production runs, our typical MOQ starts at 50 to 100 sets per size specification. For custom engineering or prototype development projects, flexible small-batch options are available during the initial design validation phase.
Q: Are your manufacturing processes compliant with CE MDR and US FDA regulations?
Yes. Our factory operates under an ISO 13485 certified quality management system. We maintain full raw material lot traceability, process validation (IQ/OQ/PQ), and technical documentation structures aligned with European CE MDR (2017/745) Class III and US FDA requirements.
Q: Can implants be supplied in pre-sterilized packaging?
Absolutely. Implants can be packaged in Class 10,000 (ISO 7) cleanrooms using double-blister Tyvek pouches, sterilized via Co-60 Gamma Irradiation to achieve a Sterility Assurance Level (SAL) of 10⁻⁶, complete with a 5-year shelf-life validation.
Q: Do you offer custom surgical instrument trays matching the OEM nail system?
Yes. We specialize in designing and manufacturing complete instrument surgical sets, including carbon-fiber insertion handles, reamers, tissue protectors, internal compression drivers, and custom anodized aluminum sterilization trays.

Request a Custom OEM Quote & Engineering Dossier

Partner with an industry-leading orthopedic manufacturer. Contact our surgical engineering team today for product catalogs, custom drawing evaluations, and competitive B2B factory pricing.
