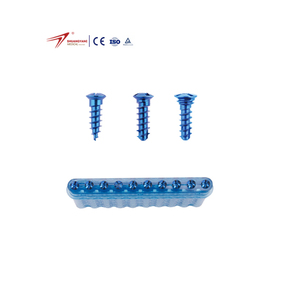

Medical Factory Supply Titanium Micro Locking Screw Implants for Neurosurgery Maxillofacial Orthopaedic Interventional Materials
Hot Sale Orthopedic Instrument Multifunctional Surgical Drill Orthopedic Power Drill Saw K-wire AO Chunk Surgery Drill
Premium Quality 3.5mm Olecranon Locking Plates 3H To 7Holes L/R With Screw & 121 Pcs Set Titanium Orthopedic Implants CE
Orthopaedic C-arm Operating Theatre Table Vascular Surgery Bed Oparating Mesa Quirurgica
Shoulder Replacement Artificial Hip Joint Prosthesis Ti6Ai4V Forged Customized Size Orthopedic Surgical Implants HKXN Brand ISO
E-IMAGE APM-06 Survey Top Plate for Camera Tripod Mounting Adapter with 5/8 Stud
Super Quality New PLIF PEEK Cage Titanium Lumbar Cage Instrument Set for Orthopedic Spine Surgery Instruments CE Approved
Medical Orthopedics Arthroscopy Trocar/reusable Arthroscope Sheath Set
Engineering & Clinical Metallurgy of Small Fragment Surgical Trays
An authoritative technical analysis for hospital procurement officers, biomedical engineers, and orthopedic distributors regarding material compliance, mechanical tolerances, and ergonomic tray configurations.
1. Advanced Metallurgy & Biomedical Material Compliance
In contemporary trauma osteosynthesis, the structural integrity of a Small Fragment Instrument Set dictates clinical surgical flow and long-term implant performance. As a premiere China wholesale small fragment instrument set factory and exporter, our engineering architecture relies exclusively on certified medical-grade alloys compliant with ISO 5832 and ASTM standards.
Implants within our 2.7mm and 3.5mm systems—including locking compression plates (LCP), olecranon plates, distal radius plates, and cortical bone screws—are forged from Ti-6Al-4V ELI (Extra Low Interstitial, ASTM F136 / ISO 5832-3) and Unalloyed Pure Titanium (ASTM F67 Grade 3 / Grade 4). For non-implant surgical instrumentation, such as bending pliers, drill guides, tap handles, and depth gauges, we utilize high-tensile martensitic and austenitic stainless steels (1.4123 / X46Cr13, Custom 455, and 1.4057). These stainless steel grades undergo vacuum heat treatment to achieve a Rockwell hardness rating of 48–54 HRC, preventing tip rounding, micro-fracturing, and thread galling during repetitive intraoperative use.
2. Technical Breakdown of the 121-Piece Small Fragment Tray
Standardized according to AO/ASIF quick-coupling mechanisms, our wholesale small fragment instrument set is modularly partitioned inside an anodized aluminum sterilizable graphic case equipped with silicone hold-down brackets. This ergonomic configuration minimizes surgical prep time and ensures seamless instrument swapping during upper limb (radius, ulna, humerus) and lower limb (fibula, distal tibia, clavicle) fracture reduction.
| Instrument Category | Dimensional Specifications | Operational Mechanism & Engineering Standards |
|---|---|---|
| Quick-Coupling Drill Bits | Ø2.5mm x 110mm / Ø2.7mm x 125mm / Ø3.5mm x 145mm | Double-flute helical spiral, AO quick-connect fitting, depth-calibrated laser etched rings with 5mm increments. |
| Threaded Drill Sleeves | 2.7mm / 3.5mm Threaded Coaxial Drill Guides | Direct threading into locking plate holes, ensuring perfect coaxial alignment (±0.02mm clearance) for locking screws. |
| Torque-Limiting Screwdrivers | StarDrive (Torx T15) & Hexagonal 2.5mm Tip | Precision slip mechanism calibrated to 1.5 Nm / 2.5 Nm, preventing screw head stripping and plate thread cold welding. |
| Reduction Forceps & Pliers | Verbrugge Forceps (150mm/190mm), Self-Centering Pliers | Ratchet-locking system, soft-grip jaws to minimize periosteal stripping during anatomical reduction. |
| Bending Irons & Template Strips | 3.5mm Plate Bending Irons (Pair), Aluminum Mesh Templates | Designed for 3D anatomical contouring of reconstruction and olecranon plates without introducing stress risers. |
| Sterilization Container Tray | Perforated Base & Lid with Filter Paper Retention Cap | Anodized Aluminum 6061-T6, tested for >1,000 autoclave steam cycles at 134°C (273°F) / 2.1 bar pressure. |
A key failure mode in small fragment trauma surgery is the "cold welding" of titanium locking screw heads into locking plate holes due to excessive manual torque. Our factory integrates pre-set, spring-loaded torque-limiting handles (1.5 Nm for 2.7mm screws; 2.5 Nm for 3.5mm screws) tested on ISO 6789 digital torque analyzers. This prevents over-tightening while guaranteeing rigid angular stability across multi-hole periarticular constructs.
3. Sourcing Intelligence & Procurement Trends (2025–2030)
The global market for orthopedic trauma devices is experiencing a structural realignment. Healthcare institutions in South America, Southeast Asia, the Middle East, and Eastern Europe are increasingly bypassing traditional tier-1 brand markups in favor of direct factory partnerships with established Chinese medical device exporters.
Key procurement trends currently reshaping orthopedic supply chains include:
- Consolidation of Turnkey Implant-Instrument Bundles: Hospitals no longer purchase instrument kits and implant inventory separately. Procurement teams require pre-validated 121-piece or 85-piece trays pre-loaded with color-coded screws (e.g., Yellow for 2.7mm, Blue for 3.5mm) directly from the manufacturer.
- Demand for Sterile-Packaged Gamma-Irradiated Implants: To minimize operating room reprocessing costs and lower hospital-acquired infection (HAI) risks, distributors are shifting toward individually packaged implants sterilized via Co-60 Gamma Radiation (SAL 10-6 per ISO 11137).
- OEM Customization & Private Labeling: Regional medical distributors require custom laser-etched branding, localized language packaging, and custom tray cutouts tailored to specific surgical preferences. Our factory provides end-to-end OEM/ODM engineering from CAD design to final registration dossiers.
- Strict Regulatory Harmonization: Compliance with EU MDR (2017/745), US FDA 510(k), and ISO 13485:2016 is now mandatory. Chinese factories equipped with full raw material heat-lot traceability, bio-burden testing, and CMM dimensional inspection reports possess a massive competitive edge.
4. Innovation Dynamics: MIPO Tech & Carbon Fiber Trays
Surgical technique evolution strongly impacts instrument manufacturing. Modern trauma surgery has moved decisively toward Minimally Invasive Plate Osteosynthesis (MIPO). Traditional large incisions are replaced by submuscular plate insertion, preserving soft-tissue envelopes and vascular supply to fracture fragments.
Our next-generation wholesale small fragment instrument sets integrate percutaneous tunneling handles, radiolucent carbon fiber drill guides, and tissue protectors that allow surgeons to pass anatomical plates through small stab incisions under C-arm fluoroscopy. Furthermore, ongoing research into carbon fiber reinforced PEEK (CF/PEEK) tray frames reduces overall kit weight by 35% while offering superior chemical resistance to aggressive alkaline enzymatic detergents during automated washer-disinfector cycles.
Why Partner with Our Factory in China?
Leverage our 20+ years of orthopedic manufacturing expertise, advanced CNC infrastructure, and stringent E-E-A-T compliant quality control.
Utilizing Swiss-type Citizen and Star automatic CNC machinery, we achieve sub-micron machining accuracy (±0.005mm) for delicate screw threads, locking grooves, and cannulated shafts.
Implant washing and primary blister packaging occur inside ISO Class 8 cleanroom facilities, preventing particulate contamination and ensuring zero endotoxin build-up.
We supply complete technical documentation—including material mill test reports, biocompatibility testing (ISO 10993), fatigue test reports (ASTM F382), and CE technical files.
