Featured Surgical Equipment & Corpectomy Systems
Explore our precision-engineered spinal fusion cages, endoscopic shaver platforms, electrocautery units, and surgical theater tables. Each product is manufactured in compliance with ISO 13485 and global regulatory frameworks to ensure seamless clinical adoption and long-term implant stability.

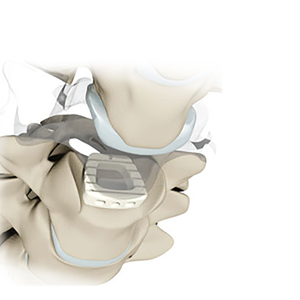

Orthopaedic Surgery Implants Corpectomy Cervical Interbody Fusion Cage Spine Cervical Cage PEEK

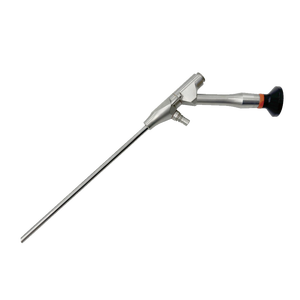

IKEDA Electric Endoscopic Discectomy System (Spine Endoscope Model) with 30 Visual Angle for Minimally Invasive Spine Surgery

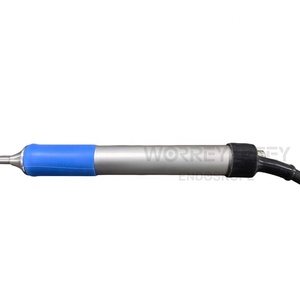

Max 70000r/min Power Drill Surgical Shaver System Discectomy Endoscope Transforaminal Instrument Endoscope Surgical Instruments

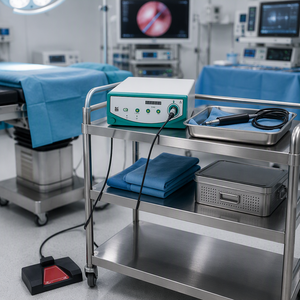

Surgical Instrument Under Discectomy Endoscope Medical Shaver System
CE MDR Certified Disposable Electrosurgical Pencil Cautery Diathermy ESU Pencil for Electrosurgical Generator with OEM Custom

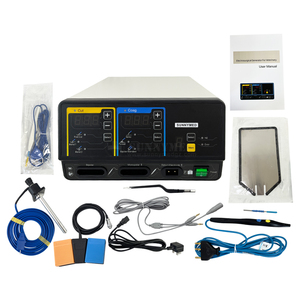

I100V Medical Equipment Cautery Diathermy Machine Electrocautery Machine Single And Bipolar Electrosurgical Unit

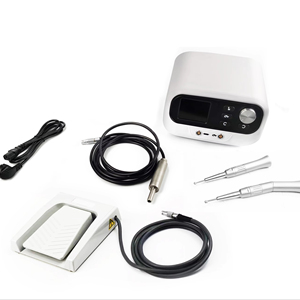

High-Speed Reusable Electric Craniotomy System for Surgical Neurosurgery Micro Polish & Reaming System Dog Animal Friendly

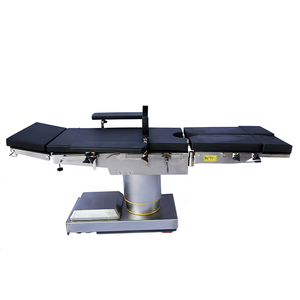

Orthopaedic C-arm Operating Theatre Table Vascular Surgery Bed Oparating Mesa Quirurgica
Biomechanical Engineering Principles of Vertebral Body Replacement (VBR)
Spinal corpectomy—the surgical resection of one or more diseased or fractured vertebral bodies along with adjacent intervertebral discs—demands structural implants capable of bearing colossal mechanical loads. As a leading China wholesale corpectomy system supplier, our engineering teams design Vertebral Body Replacement (VBR) devices that restore anterior column height, re-establish sagittal alignment, and facilitate solid bone fusion in critical cervical, thoracic, and lumbar procedures.
In healthy human anatomy, the anterior spinal column supports approximately 80% of axial compressive loads. When cervical spondylotic myelopathy (CSM), severe burst fractures, spinal tumors, or osteomyelitis necessitate a corpectomy, the mechanical continuity of the spine is compromised. Implanting an engineered corpectomy system is paramount to prevent kyphotic deformity, protect neurological structures, and ensure immediate post-operative load sharing.
Key Clinical Insight: Optimal corpectomy cage design must strike a precise balance between structural rigidity to resist axial compression and physiological elasticity to match host bone density, thereby minimizing endplate subsidence and post-operative graft dislocation.
Anterior Cervical Corpectomy and Fusion (ACCF) Dynamics
In the cervical spine (C3–C7), Anterior Cervical Corpectomy and Fusion (ACCF) is indicated when pathological lesions extend beyond the level of a single disc space. Traditional bone autografts (such as fibular or iliac crest struts) suffered from high donor-site morbidity, stress shielding, and collapse rates exceeding 25%. Modern cervical corpectomy cages fabricated from Polyetheretherketone (PEEK) or titanium alloy (Ti-6Al-4V) overcome these historical constraints through modular height selection and anatomically contoured footings.
Material Science: PEEK vs. Titanium Alloy (ASTM F1472 / Ti-6Al-4V ELI)
Selecting the appropriate implant material is a crucial procurement decision for hospital purchasing boards and orthopedic distributors:
- Medical-Grade PEEK (Polyetheretherketone): Features an elastic modulus of ~3.6 GPa, closely mimicking human cortical bone (12–18 GPa) far better than solid metallic constructs. This stiffness match dramatically reduces stress shielding at the bone-implant interface. Furthermore, PEEK is radiolucent, allowing surgeons to evaluate osseous bridge formation via standard post-operative X-ray and CT scans without radiopaque artifact distortion. Integrated tantalum pins serve as radiopaque markers for exact fluoroscopic positioning.
- Titanium Alloy (Ti-6Al-4V ELI, ASTM F1472 / ASTM F67): Offers unmatched ultimate tensile strength (≥930 MPa) and dynamic fatigue resistance. Titanium mesh and 3D-printed porous cages encourage direct biological bone ingrowth (osseointegration) due to micro-rough surface textures. They are particularly favored in heavy thoracolumbar reconstructions where maximum compressive loading is required.
Corpectomy System Specifications & Biomechanical Metrics
Our manufactured spinal implants undergo rigorous mechanical testing adhering to ASTM F2077 (Test Methods For Intervertebral Body Fusion Devices) and ASTM F2267 (Standard Test Method for Measuring Load-Induced Subsidence of Intervertebral Body Fusion Devices Under Static Axial Compression).
| Implant System Type | Material Standard | Static Compression Load | Dynamic Fatigue Limit | Radiolucency & Imaging | Primary Indications |
|---|---|---|---|---|---|
| Cervical PEEK Corpectomy Cage | ASTM F2026 PEEK + Tantalum Markers | > 18,000 N | 5,000,000 cycles @ 3.5 kN | Radiolucent (Zero CT/MRI Artifact) | ACCF, Cervical Myelopathy, Trauma |
| Expandable Titanium VBR System | Ti-6Al-4V ELI (ASTM F1472) | > 32,000 N | 5,000,000 cycles @ 7.0 kN | Radiopaque (Structural Osseointegration) | Thoracolumbar Burst Fractures, Tumor |
| 3D-Printed Porous Titanium Cage | Ti-6Al-4V (50–70% Porosity) | > 24,000 N | 5,000,000 cycles @ 5.5 kN | Semi-Radiolucent Micro-Structure | Multilevel Reconstruction, Osteoporosis |
| Anterior Cervical Plate System | Pure Titanium TA2/TA3 (ASTM F67) | > 12,000 N | 5,000,000 cycles @ 2.5 kN | Radiopaque Low-Profile Locking | Supplemental Fixation for ACCF Cages |
Future Procurement Trends in Global Corpectomy & Spine Systems (2025–2035)
The global market for spinal implants and vertebral body replacement systems is undergoing a profound structural shift driven by demographic aging, technological convergence, and healthcare cost-containment mandates. Sourcing managers must align their supply chain strategies with these critical emerging trends:
1. Shift to Stepless Expandable VBR Cages
Fixed-length mesh cages require tedious intraoperative trimming and sizing, which prolongs anesthesia time and increases endplate damage. Continuous expandable cages allow surgeons to adjust height in situ under fluoroscopy, applying controlled distraction forces that restore lordosis precisely.
2. Convergence with Endoscopic Discectomy (UBE)
Minimally Invasive Spine Surgery (MISS) and Unilateral Biportal Endoscopy (UBE) are rapidly expanding. Procurement teams are consolidating purchases by bundling spinal implants with high-speed power drills (up to 70,000 RPM), 30° visual angle spinal endoscopes, and specialized shaver blades.
3. Single-Use Gamma Sterilized Packaging
Hospitals are actively reducing operating room processing overhead and hospital-acquired infection (HAI) risks. Individually blister-packaged bone screws, plates, and corpectomy implants pre-sterilized via Cobalt-60 gamma radiation (SAL 10⁻⁶) represent the future of medical distribution.
Why Partner with Orthi Medical: Enterprise Advantages & OEM Excellence
Orthi Medical Co., Ltd. is a premier China wholesale corpectomy system supplier and OEM contract manufacturer. We operate a fully integrated, ISO 13485-certified industrial infrastructure equipped to handle high-precision machining, surface treatments, sterile packaging, and global regulatory registration.
5-Axis Swiss CNC Precision Machining
Utilizing imported multi-axis CNC machining centers (Citizen, Star) to achieve sub-micron dimensional tolerances on complex PEEK teeth serrations, thread profiles, and titanium locking mechanisms.
Full Raw Material Traceability
Every batch of titanium alloy bar (ASTM F1472 / TC4) and medical PEEK resin (Invibio / Solvay) comes with mill certificates, chemical composition analysis, and mechanical tensile test reports.
OEM / ODM Private Label Solutions
From customer blueprint drawings to 3D prototype samples, custom laser marking, color-coded anodizing, customized instrument tray layout, and complete Design History Files (DHF).
Frequently Asked Questions (FAQ) for B2B Procurement & Surgical Buyers
What quality certifications do Orthi Medical corpectomy systems hold?
Our complete manufacturing process operates under an ISO 13485 and ISO 9001 certified Quality Management System. Selected implant product lines carry CE marking (MDR compliance ready). Raw materials strictly adhere to ASTM F67 (pure titanium TA2/TA3), ASTM F1472 (Ti-6Al-4V), and ASTM F2026 (medical-grade PEEK) specifications.
Can you manufacture custom corpectomy implants based on our engineering drawings?
Yes. As a dedicated OEM/ODM supplier in China, we provide end-to-end contract manufacturing services. Our engineering team conducts Finite Element Analysis (FEA) on client 2D/3D CAD models, produces CNC functional prototypes within 14 days, and supports full-scale automated mass production with customized instrument tray kits.
Are implants available in pre-sterilized packaging for immediate OR use?
Yes. We supply implants in cleanroom-sealed double blister packages sterilized by Co-60 gamma irradiation, achieving a Sterility Assurance Level (SAL) of 10⁻⁶. This eliminates hospital reprocessing costs and guarantees 5-year shelf-life stability.
What is the standard lead time for wholesale B2B orders?
Standard catalog items (PEEK cages, cervical plates, pedicle screws) ship within 15–20 business days. Custom OEM orders requiring specialized tooling or anodized color-coding typically take 30–45 days from prototype sign-off.
Do you provide surgeon training manuals and technical registration support?
Absolutely. We supply comprehensive Surgical Technique Guides (STG), animated surgical workflow videos, and technical master files (including biomechanical test data and biological evaluation reports per ISO 10993) to facilitate rapid local health authority registration for your distribution business.
Partner with China’s Leading Corpectomy System Manufacturer
Whether you are seeking high-margin wholesale spinal implants or an experienced OEM partner to bring your custom medical device to market, our engineering specialists are ready to collaborate.
