Precision-Engineered Orthopedic Implants & Surgical Instruments
Direct factory recommendations manufactured under ISO 13485 quality standards, offering extreme mechanical durability, biocompatibility, and surgical precision.
Orthopedic Implants and Instruments Set Polyaxial Spine Titanium Pedicle Screws Upgraded Usmart 5.5 Spinal Screw-Rod System

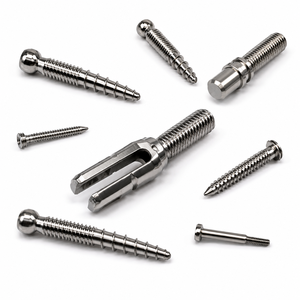

ISO 13485 CNC Machining Medical Stainless Steel Parts Surgical Bone Screw Dental Abutment Titanium OEM Precision Implant
ISO13485 Certified Precision Custom CNC Machining Dental Abutment Implant Screw Titanium Medical Component

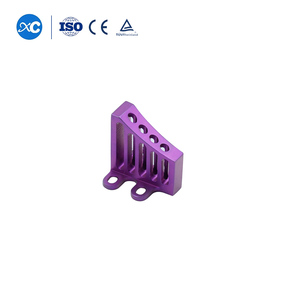

Premium Orthopedic Veterinary Trauma Implant Surgical Instrument - Titanium TTA Implant for Animal Orthopedic Trauma Surgery
Orthopedic Implants for Large Animals Veterinary Spinal Screw
Convenient Use Veterinary Surgery Orthopedic Implants Titanium Implant 1.1/1.5/2.0/2.4mm Double T Cuttable Plate CE Certified
Veterinary Orthopedic Pedicle Screws Surgical Implants & Interventional Materials Product
Surgical Internal Fixation Implant Intramedullary Nail Removal Instruments Set
Why Top Global Medical Brands Partner with China's Premier ODM Hubs
Navigating global orthopedic supply chains requires an original design manufacturer (ODM) with proven technical authority, traceable raw materials, multi-axis precision machining, and exhaustive regulatory documentation.
Medical-Grade Biomaterials
Every implant is forged from certified biocompatible materials adhering strictly to international standards: Ti-6Al-4V ELI (ASTM F1472 / ISO 5832-3), Pure Titanium Grade 2 & 4 (ASTM F67), PEEK-OPTIMA, and CoCrMo alloys. Mill certificates and chemical compositional reports accompany every production batch.
Sub-Micron CNC Precision
Utilizing 5-axis DMG MORI and Swiss-type Citizen CNC sliding-head lathes, our manufacturing infrastructure executes complex screw threads, friction-fit polyaxial tulip heads, dynamic locking plate geometries, and specialized micro-dental abutments with tolerances held tightly to ±0.003 mm.
Class 100,000 Cleanroom & Sterilization
Implants undergo ultrasonic cleaning, automated anodization, laser marking, and primary packaging within an ISO Class 7 (Class 100,000) cleanroom environment. Pre-sterilized solutions are processed via Cobalt-60 Gamma Irradiation to achieve a Sterility Assurance Level (SAL) of 10-6 compliant with ISO 11137.
Comparative Matrix of Implant Material Standards
Choosing the optimal biomaterial directly impacts fatigue life, stress shielding resistance, and patient clinical outcomes. Our technical matrix outlines key mechanical properties per ISO/ASTM specifications.
| Biomaterial Standard | Tensile Strength (MPa) | Yield Strength (MPa) | Modulus of Elasticity (GPa) | Fatigue Resistance | Primary Clinical Applications |
|---|---|---|---|---|---|
| Ti-6Al-4V ELI (ASTM F1472 / TC4) | ≥ 930 | ≥ 860 | 110 - 114 | Extreme (High Cycle) | Pedicle Screws, Trauma Plates, Intramedullary Nails, Vet TTA |
| Pure Titanium TA2 / TA3 (ASTM F67) | 400 - 550 | 275 - 480 | 100 - 105 | Moderate / High Ductility | Cervical Plates, Cuttable Reconstruction Plates, Maxillofacial |
| PEEK-OPTIMA (Invibio Polymer) | 90 - 100 | 110 - 130 | 3.5 - 4.1 (Cortical Match) | Superior Creep Resistance | Interbody Fusion Cages (PLIF/TLIF), Suture Anchors |
| Medical Grade Stainless Steel (316L / ISO 5832-1) | ≥ 860 | ≥ 690 | 190 - 200 | High Fatigue Strength | Temporary Internal Fixation, Surgical Instruments, Drill Bits |
| Cobalt-Chromium Alloy (CoCrMo / ASTM F75) | ≥ 960 | ≥ 560 | 220 - 230 | Exceptional Wear Resistance | Total Joint Arthroplasty (Femoral Heads, Tibial Trays) |
Future Procurement Trends in Global Orthopedic Manufacturing
The global market for orthopedic implants is undergoing a rapid paradigm shift driven by minimally invasive surgical techniques, bio-absorbable polymers, single-use sterile packaging, and additive manufacturing integration.
1. Additive Manufacturing & Porous Trabecular Structures
Direct Metal Laser Sintering (DMLS) and Electron Beam Melting (EBM) 3D printing technologies allow Chinese ODM hubs to manufacture porous titanium implants that mimic natural human cancellous bone architecture. This osteoinductive surface topology promotes direct bone ingrowth (osseointegration) without needing secondary Plasma-Sprayed Hydroxyapatite (HA) coatings. Global procurement teams are expanding 3D-printed interbody fusion cages and custom acetabular cups into their core catalog offerings.
2. Dominance of MIS & UBE Surgical Instrumentation
Surgeons are rapidly shifting from traditional open spinal procedures to Minimally Invasive Surgery (MIS) and Unilateral Biportal Endoscopy (UBE). Procurement requirements now prioritize self-tapping cannulated pedicle screws, expandable interbody cages, low-profile anterior cervical plates, and specialty endoscope sheath instruments. Forward-thinking suppliers must offer paired instrument trays designed for reduced incision sizes and minimal muscular trauma.
3. Transition to Pre-Sterilized "Kit-Based" Packaging
Hospitals and ambulatory surgery centers (ASCs) are seeking to eliminate costly, energy-intensive operating room autoclave cycles. The market is shifting heavily toward pre-sterilized, single-implant blister packs (Gamma Co-60 irradiated to SAL 10-6). Providing pre-packaged, barcoded, and traceably labeled implants lowers hospital overhead, mitigates cross-contamination risks, and accelerates surgical turnover times.
4. Growth of Veterinary Orthopedics & Small-Animal Trauma
The global veterinary orthopedic market is experiencing double-digit annual growth. Specialized veterinary trauma products—including Tibial Tuberosity Advancement (TTA) titanium plates, double-T cuttable plates, micro-locking plates (1.1mm to 2.4mm), and small animal pedicle screw systems—are experiencing explosive demand. Leading ODM manufacturers provide shared technology platforms that adapt human-grade micro-machining accuracy for veterinary surgical applications.
Full Lifecycle Engineering: From Blueprints to Regulatory Dossiers
Partnering with a tier-1 Chinese orthopedic manufacturer unlocks streamlined co-development, custom private-label branding, customized surgical tray layout, and fast-track regulatory clearance.
CAD & FEA Design
Engineers transform client concept sketches into detailed 3D SolidWorks designs, performing Finite Element Analysis (FEA) to simulate stress concentration and optimize load distribution.
Rapid Prototyping
High-speed CNC prototyping facilities deliver fully functional titanium or stainless steel implant samples within 10-15 business days for biomechanical verification.
Mechanical Testing
Implants undergo rigorous dynamic fatigue, static torsion, and pull-out strength testing according to ASTM F543 (Bone Screws) and ISO 12189 (Spinal Fixation) protocols.
Regulatory Support
Comprehensive technical documentation files (STED format), biocompatibility reports (ISO 10993), and sterilization validation studies are provided for CE MDR and FDA 510(k) filings.
Frequently Asked Questions by International Medical Device Buyers
Detailed technical and commercial answers addressing quality assurance, manufacturing lead times, customization capabilities, and compliance standards.
What quality certifications and regulatory standards do your orthopedic implants comply with?
Our manufacturing facilities operate under a strict ISO 13485:2016 and ISO 9001 quality management system. Applicable product lines hold European CE marking (CE MDR compliant). Implant raw materials strictly adhere to international metallurgical specifications, including ASTM F1472 (Ti-6Al-4V ELI titanium alloy), ASTM F67 (TA2/TA3 pure titanium), ASTM F136, ASTM F75 (CoCrMo), and Invibio PEEK-OPTIMA standards. Every raw material lot is delivered with complete chemical composition and mechanical mill test certificates.
Do you provide custom OEM/ODM manufacturing based on proprietary technical drawings?
Yes, original design manufacturing (ODM) and original equipment manufacturing (OEM) form our core business model. We offer complete custom manufacturing services from 2D/3D CAD drawings or physical sample reverse-engineering. Services include multi-axis CNC micro-machining, custom laser etching/marking, specialized color anodization (color coding by diameter/length), custom surgical instrument tray design, and private-label cleanroom packaging tailored to your brand specifications.
Can bone screws, plates, and pedicle screws be supplied pre-sterilized?
Yes. Implants can be supplied in non-sterile bulk packaging or pre-sterilized individual double-blister Tyvek packaging. Sterile packaging processes are validated in accordance with ISO 11607 and sterilized via Cobalt-60 Gamma Irradiation under ISO 11137 standards, achieving a Sterility Assurance Level (SAL) of 10-6. Accelerated aging testing supports a validated 5-year shelf-life stability.
What product lines are available for global medical distributors to source?
Distributors can consolidate their purchasing across eight comprehensive categories: (1) Trauma Fixation (locking plates, intramedullary tibia/femur nails, cannulated compression screws); (2) Spinal Fixation Systems (polyaxial pedicle screws, PEEK cages, cervical plates, kyphoplasty sets); (3) Sports Medicine (PEEK suture anchors, shaver blades, PCL drill guides); (4) Hip & Knee Arthroplasty (cementless stems, acetabular cups, knee joint components); (5) Minimally Invasive Surgery & UBE Systems (biportal endoscopes, 4K camera towers, RF plasma probes); (6) Interventional Stents (coronary BMS/DES, double J ureteral stents); (7) Veterinary Orthopedic Systems (TTA plates, cuttable plates, animal pedicle screws); and (8) Complete Surgical Instrument Sets.
What is your typical production lead time and minimum order quantity (MOQ)?
For standard catalog items maintained in inventory, orders ship within 7 to 10 business days. For customized OEM/ODM projects or private-label production runs, initial sample prototypes are completed within 15 to 20 days following blueprint sign-off, while mass production batch lead times average 30 to 45 days. Minimum Order Quantities (MOQs) are flexible depending on product complexity: micro-screws typically start at 100 units per specification, while specialized instrument sets can be ordered starting from single complete kits.
Do you offer technical training, surgical technique guides, and clinical support for distributors?
Absolute transparency and technical empowerment are central to our distributor partnerships. We provide step-by-step Surgical Technique Manuals, high-resolution 3D animation videos, instrument assembly guides, cadaveric workshop support materials, and direct video conferencing with our senior biomedical design engineers to support local clinical launches and surgeon educational symposiums.
Ready to Scale Your Orthopedic Product Portfolio?
Connect with our technical engineering team to request factory pricing, CAD technical evaluations, sample prototypes, or an audit of our ISO 13485 manufacturing facility.
