Explore top-tier orthopedic trauma implants manufactured by leading Chinese OEM/ODM facilities. Built for Neer Type II distal clavicle fractures and Rockwood Grade III–V acromioclavicular joint dislocations.

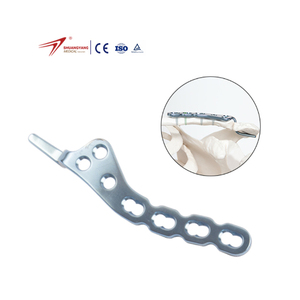

Complete trauma surgical tray featuring anatomical clavicle hook plates, claw plates, bending pliers, and precision drill guides.
Send an Inquiry

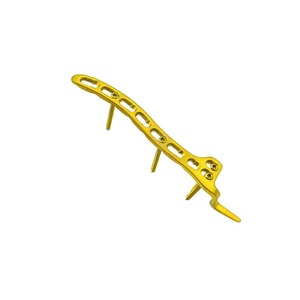

CE ISO certified titanium locking hook plate engineered for optimal subacromial fit and rigid angular stability.
Send an Inquiry

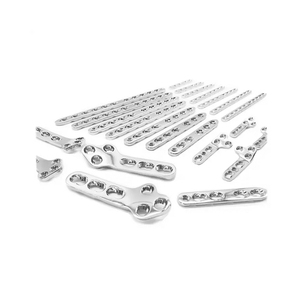

Ultra-low profile 1.5mm straight locking plate system designed for small fragment anatomical trauma reconstruction.
Send an Inquiry

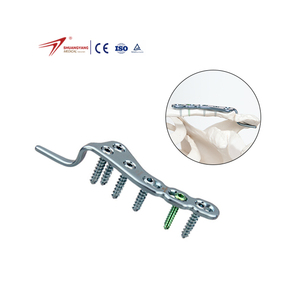

Class III medical device certified upper limb small fragment locking plate system with anatomical claw-hook profile.
Send an Inquiry

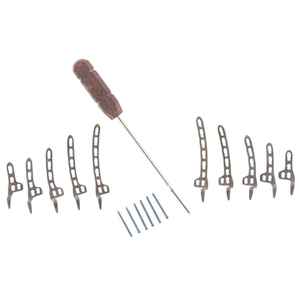

Medical grade 316LVM stainless steel 3.5mm hook locking plates available in 2 to 6 hole configurations (Left/Right).
Send an Inquiry
Reusable 3.5mm LCP clavicle hook plates manufactured for rigid osteosynthesis and dynamic compression fixation.
Send an Inquiry
Dual-material AC joint dislocation plate featuring offset hook angles to reduce subacromial impaction risk.
Send an Inquiry
Direct factory supply of distal anatomical titanium locking compression plates with custom anodization options.
Send an InquiryA technical evaluation of anatomical implant design, subacromial clearance geometry, dynamic load transfer, and metallurgical benchmarks for international medical device distributors.
Acromioclavicular (AC) joint dislocations (Rockwood Grade III to V) and distal clavicle fractures (Neer Type IIA/IIB) represent complex biomechanical challenges in orthopedic trauma surgery. The Clavicle Hook Locking Compression Plate (LCP) has emerged as the definitive global gold standard for internal fixation. China's top tier-1 orthopedic manufacturing hubs have evolved advanced 5-axis CNC machining, titanium anodization processes, and dynamic fatigue testing setups that equal or surpass European quality benchmarks while delivering a 35%–50% total cost of acquisition advantage.
The hook component extends beneath the posterior aspect of the acromion process, acting as a dynamic lever arm that depresses the elevated distal clavicle while maintaining physiological motion during early shoulder rehabilitation. This design eliminates the need for rigid screws across the AC joint space, preventing post-operative joint stiffness.
Modern Chinese factories utilize morphological ethnic database modeling to optimize the hook offset angle (95°–105°) and hook length options (12mm, 15mm, 18mm). This precise anatomical contouring prevents subacromial erosion, subacromial bursitis, and rotator cuff fraying during shoulder abduction.
Incorporating dual-purpose Combi-holes allows orthopedic surgeons to choose between standard 3.5mm cortical screws for dynamic axial fracture compression or fixed-angle locking screws to ensure robust pull-out resistance in osteoporotic bone tissue.
Choosing the correct raw material profile is critical for implant fatigue life, corrosion resistance, and MRI artifact reduction.
| Specification Parameter | Titanium Alloy (Ti-6Al-4V ELI) | Stainless Steel (316LVM) | Clinical & Manufacturing Advantage |
|---|---|---|---|
| Standard Specification | ASTM F136 / ISO 5832-3 | ASTM F138 / ISO 5832-1 | Guarantees medical-grade chemical purity & biocompatibility. |
| Tensile Strength (Ultimate) | ≥ 860 MPa (TC4 / TA3) | ≥ 860 - 1100 MPa (Cold worked) | Prevents permanent hook deformation under cyclic deltoid loads. |
| Elastic Modulus | 110 GPa | 190 GPa | Titanium closer to cortical bone (18-30 GPa), reducing stress shielding. |
| MRI Imaging Artifacts | Minimal (Non-ferromagnetic) | Moderate to High Interference | Titanium allows clean post-op diagnostic MRI scans of shoulder soft tissue. |
| Surface Passivation | Type II Anodization (Color coded) | Electropolished Electro-passivation | Enhances corrosion resistance and color identifies Left/Right plates. |
| Fatigue Limit (Cycles) | > 5,000,000 Cycles @ 300N | > 5,000,000 Cycles @ 320N | Tested per ASTM F382 cyclic 4-point bending protocols. |
China's top factories like Orthi Medical Co., Ltd. enforce rigorous electrochemical surface treatments. Titanium implants undergo electrochemical Type II Anodization, forming a oxide layer (TiO₂) that prevents ion release into surrounding glenohumeral tissue. Every batch comes with raw material mill test certificates (MTC) linked to original melting heat numbers for total lot traceability.
Key strategic shifts transforming global orthopedic supply chains, hospital tender requirements, and factory manufacturing capabilities.
Hospitals globally are phasing out non-sterile implant trays due to high autoclave reprocessing costs and infection risks. Over 70% of international tenders now mandate individual, dual-blister Tyvek sterile packaging sterilized by Co-60 gamma irradiation with a Sterility Assurance Level of SAL 10⁻⁶.
Traditional flat plates required manual bending in the operating room, risking fatigue notch creation. Modern suppliers utilize 3D CT reconstruction algorithms to manufacture pre-contoured anatomical plates that fit the asymmetric S-shape of the human clavicle right out of the box.
Global distributors are bypassing European trading intermediaries and partnering directly with tier-1 Chinese manufacturers. Direct factory OEM engagement reduces lead times from 16 weeks to under 4 weeks while enabling customized laser marking, private-label box branding, and tailored instrument kit design.
Strict implementation of EU MDR 2017/745 demands robust clinical evaluation reports (CER) and post-market surveillance (PMS). Leading Chinese factories provide complete technical dossiers, biocompatibility data (ISO 10993), and mechanical testing reports ready for national health authority filings.
A full-service ISO 13485 certified orthopedic device manufacturer offering trauma, spine, sports medicine, joint arthroplasty, and OEM solution ecosystems.
From raw titanium bar stock to final cleanroom packaging, every process is conducted in-house. Equipped with 5-axis Swiss-type CNC centers, wire EDM, automated ultrasonic washing, and laser etching machines.
Operating under strict ISO 13485 and ISO 9001 quality management systems. Product lines carry CE marks and full technical documentation packages to ensure smooth regulatory clearance in your target markets.
We provide drawing-based machining, custom surgical instrument tray design, private-label branding, customized color anodization, and sterile barrier packaging tailored to your brand's specifications.
Essential technical, regulatory, and commercial insights for medical device procurement managers.
Elevate your orthopedic portfolio with high-precision, ISO 13485 certified clavicle hook plate systems, OEM private labeling, and direct factory pricing. Contact our engineering and commercial export team today.
