CE Certified PEEK Interbody Fusion Cage Systems
Explore our flagship series of medical-grade PEEK (ASTM F2026) interbody cages engineered for cervical and thoracolumbar spinal fusion surgery, complete with surgical instrumentation.

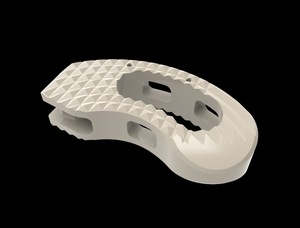

Orthopaedic Cervical Interbody Fusion PEEK Cage
Anatomical tooth profile with radiopaque Tantalum marker pins for precise positioning during ACIF spinal procedures.
Geasure Medical-Grade PEEK Cervical Fusion Cage
High-biocompatibility PEEK polymer cage optimized for anterior cervical decompression and interbody fusion.

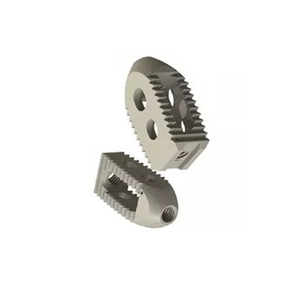

JMT EDEN Premium Lumbar Spinal PEEK Cage
Top-ranked interbody cage designed for optimal axial load distribution and enhanced bone graft retention.

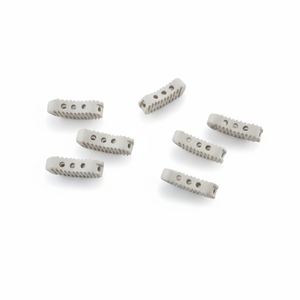

Transforaminal Lumbar Interbody Fusion (TLIF) PEEK Cage
Available in standard dimensions (7x10x28 & 8x10x28mm) with bullet-shaped nose for smooth MIS insertion.

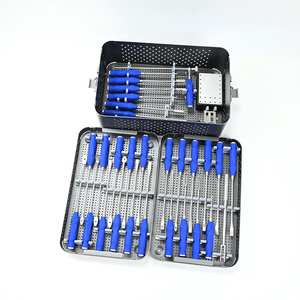

PLIF PEEK Cage & Titanium Lumbar System Set
Complete posterior lumbar interbody fusion solution matching PEEK implants with surgical steel instrument kits.

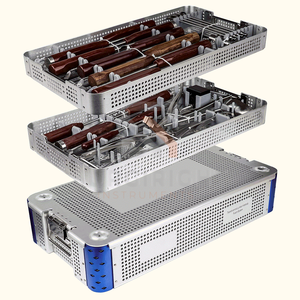

CE Certified PEEK TLIF Fusion Cage Instrument Kit
Precision surgical tool set engineered for seamless cage trial positioning, endplate rasping, and implantation.

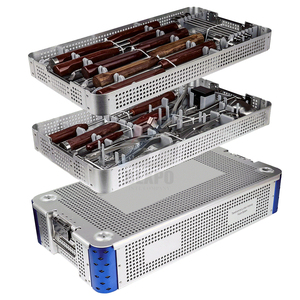

Manual TLIF & Cervical Interbody Cage Set
Multi-functional surgical tray containing trial implants, holders, and inserters for versatile spine surgery.

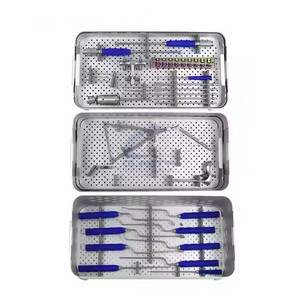

Stainless Steel TLIF Cage Surgical Instrument System
Ergonomic manual surgical instrument set designed specifically for PEEK interbody cage distraction and placement.
Biomechanical Engineering & Materials Science of PEEK Interbody Cages
An authoritative report on Polyetheretherketone (PEEK) biomaterials, stress shielding prevention, radiolucency advantage, and international ISO 13485 manufacturing standards for orthopedic distributors.
Modulus of Elasticity & Stress Shielding Reduction
Polyetheretherketone (PEEK-OPTIMA / ASTM F2026) exhibits an elastic modulus of approximately 3.6 GPa, closely matching human cortical bone (12–18 GPa) compared to traditional Titanium alloys (~110 GPa).
- Prevents Subsidence: Reduces stress concentration at the vertebral endplate interface.
- Load Sharing: Promotes Wolff’s Law by transferring physiological mechanical load to the internal bone graft.
- Long-term Stability: Minimizes post-operative implant sinkage and loss of intervertebral height.
Radiolucency & Fluoroscopic Visualization
Unlike metallic implants that generate substantial scatter artifacts on X-Ray, CT, and MRI scans, medical PEEK is inherently radiolucent, granting spinal surgeons complete visualization of the arthrodesis process.
- Tantalum Markers: Embedded ISO 13782 / ASTM F560 Tantalum pins provide precise radiographic intraoperative verification.
- Fusion Assessment: Clear evaluation of bridging bone growth inside the central hollow graft chamber.
- Artifact-Free MRI: Allows unambiguous postoperative spinal cord and root nerve decompression monitoring.
Mechanical Fatigue & Dynamic Shear Testing
Every CE-marked PEEK cage designed by Orthi Medical undergoes strict mechanical characterization adhering to ASTM F2077 (Test Methods for Interbody Fusion Devices) and ASTM F2267 (Subsidance Testing).
- Static & Dynamic Compression: Tested beyond 5,000,000 axial fatigue cycles without structural delamination.
- Torsional Shear Strength: Optimized serrated pyramid teeth resist implant expulsion under rotational forces.
- Biocompatibility Validation: Passed ISO 10993 full-spectrum cytotoxicity and systemic toxicity screening.
Biomechanical Performance Comparison: PEEK vs. Alternative Biomaterials
| Biomechanical Parameter | Medical PEEK Polymer (ASTM F2026) | Titanium Alloy (Ti-6Al-4V) | Structural Allograft Bone |
|---|---|---|---|
| Modulus of Elasticity (GPa) | 3.6 GPa (Closest to Cortical Bone) | 110 GPa (High Stiffness) | 12 - 18 GPa |
| Radiographic Artifact Index | Zero (Radiolucent + Markers) | High (Severe Metal Scatter) | Zero (Natural Radiolucency) |
| Stress Shielding Risk | Extremely Low | High (May cause graft resorption) | Low |
| Endplate Subsidence Rate | < 3.2% Clinical Rate | 8.5% - 14.1% | Variable (Risk of fracture) |
| Sterilization Compatibility | Gamma Co-60 & Autoclave Resistant | High Resistance | Limited (Processing impacts strength) |
Future Procurement & Design Trends in Spinal Fusion Implants
As global surgical volume shifts toward Minimally Invasive Surgery (MIS) and Ambulatory Surgical Centers (ASCs), orthopedic procurement teams must align with emerging structural and regulatory trends.
Porous Titanium-Coated PEEK & 3D Porous Hybrid Cages
The convergence of PEEK's ideal modulus with plasma-sprayed titanium or 3D porous surface topographies represents the fastest-growing market segment. This hybrid design promotes rapid osteoblast attachment and early osseointegration while retaining radiolucency in the central core.
Zero-Profile Integrated Stand-Alone Cervical Systems
Hospitals are rapidly adopting zero-profile cervical PEEK cages featuring integrated titanium locking screws or anchors. By eliminating the need for a separate anterior cervical plate (ACP), surgical time is reduced by up to 35% and post-operative dysphagia rates are drastically minimized.
Unilateral Biportal Endoscopy (UBE) Optimized Geometry
With UBE and expandable endoscopic spine procedures increasing globally, cage geometries are shifting toward bulleted lead-ins, self-distracting nose profiles, and steerable inserter connections to facilitate smooth transforaminal insertion through tiny endoscopic working channels.
Pre-Sterilized Gamma Packaging (SAL 10-6)
Distributors are moving away from non-sterile implant sets toward individual blister-packed, pre-sterilized implants. Gamma-irradiated implants reduce hospital reprocessing costs, prevent cross-contamination risks, and offer clear audit trails with UDI barcode integration.
Frequently Asked Questions for Importers & Medical Distributors
Essential regulatory, quality, and technical answers to streamline your OEM purchasing and regional market authorization.
Orthi Medical: A Trusted Global Leader in Spinal Implant Manufacturing
Orthi Medical Co., Ltd. operates state-of-the-art medical device manufacturing facilities equipped with 5-axis DMG MORI CNC machining centers and automated inspection systems. We provide comprehensive orthopedic trauma, spine, sports medicine, and joint replacement solutions to distributors across Europe, the Americas, Asia, and the Middle East.
- ✓ End-to-End Quality Management: Certified ISO 13485 and ISO 9001 quality systems covering incoming raw titanium/PEEK inspection to cleanroom packaging.
- ✓ Full Regulatory Support: Registration-ready technical files, surgical technique guides, and clinical evaluation dossiers for fast local market clearance.
- ✓ Surgeon Training & Academic Support: Hands-on workshop kits, cadaver lab support materials, and comprehensive product training for sales teams.
Complete TLIF PEEK Cage Surgical Tool Suite
Integrated stainless steel spinal distraction, trial rasping, and cage insertion instruments supplied in autoclavable container trays.
